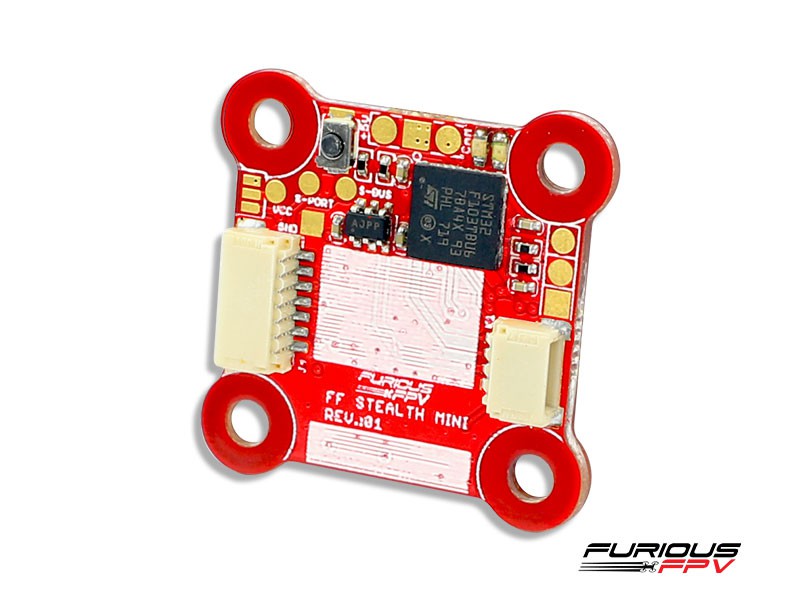

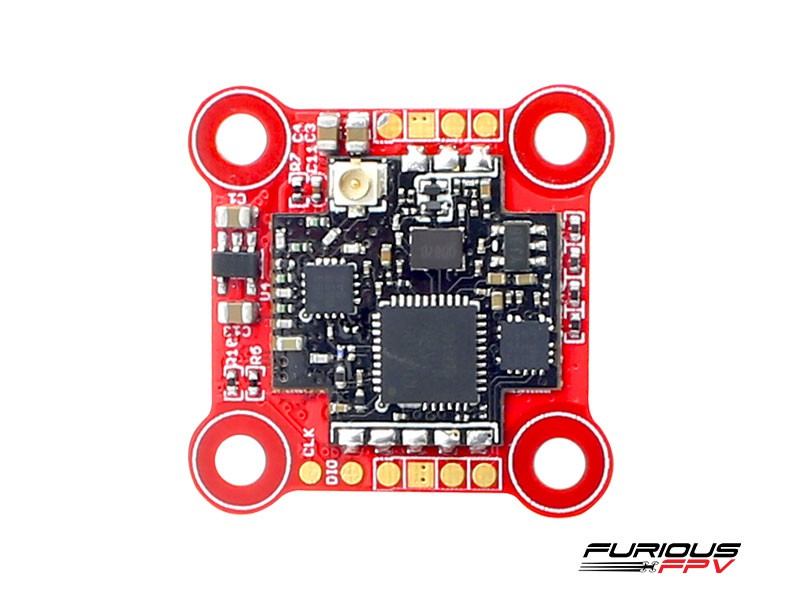

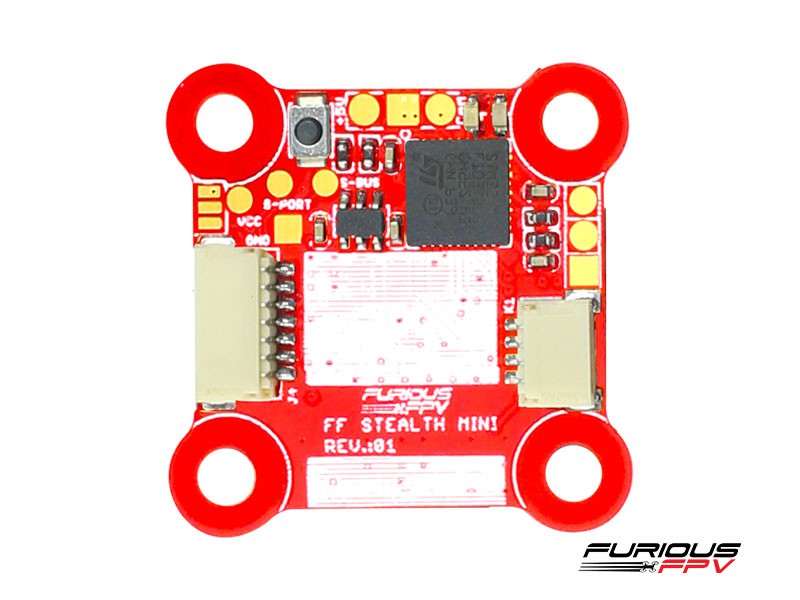

Furious FPV Stealth Mini VTX adjustable 25/200mW 20x20mm

More Views

Furious FPV Stealth Mini VTX adjustable 25/200mW 20x20mm

Availability: Out of stock

Advanced stackable 20x20 VTX from FuriousFPV designed for easy build and connection with any 20x20 sized OSD FCs and FrSky R-XSR RX


Features and specs

  • Built-in Thermal protection
  • Adjustable VTx Power Output with Pit Mode
  • Supports Betaflight Peripheral configuration
  • Flexible VTx Power for Race & Freeride Flight
  • Stealth Power Up Capability
  • One port for Led strip on board
  • Fully Adjustable VTx and led strip with smartphone app
  • U.FL connector
  • Designed with R-XSR receiver
  • Perfectly fit with PIKO F4 OSD (Mounting hole: 20 x 20 mm)
  • Unlockable modes for US, EU and International.
  • 25mW - 0.4A; 200mW - 0.75A (Test performed without receiver and LED Strip)
  • Power with 5V input
  • VTx Power: Pitmode(0.1mW)/25mW/200mW
  • Mini Size: 27mm x 27mm w/ 20mm x 20mm Mounting Holes
  • Stackable with Piko F4 OSD & All 20mm x 20mm FC's
  • Power On & Off VTx via Transmitter

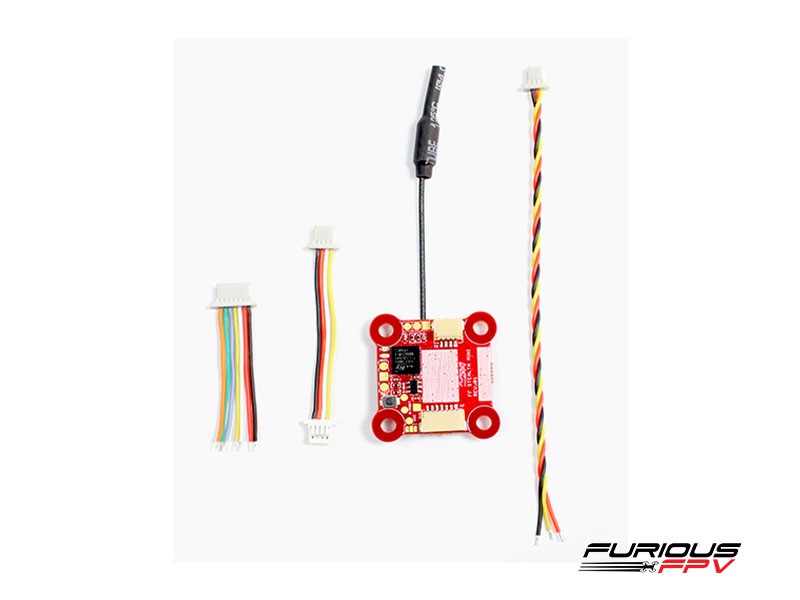

1x Stealth Mini VTX
1x Linear Antenna
1x 4pin silicon cable for optional Bluetooth module connection
1x 7pin silicon cable for Piko F4 OSD one-cable connection
1x 3pin silicon cable for LED strip connection

FuriousFPV Stealth Mini VTX full user manual

Additional Information

Additional Information

Frequency 5.8 Ghz
Power (mW) 25mW, 200mW
Antenna connector U.FL
Item weight (g) 3.6
Dimensions 27 x 27 x 6mm
