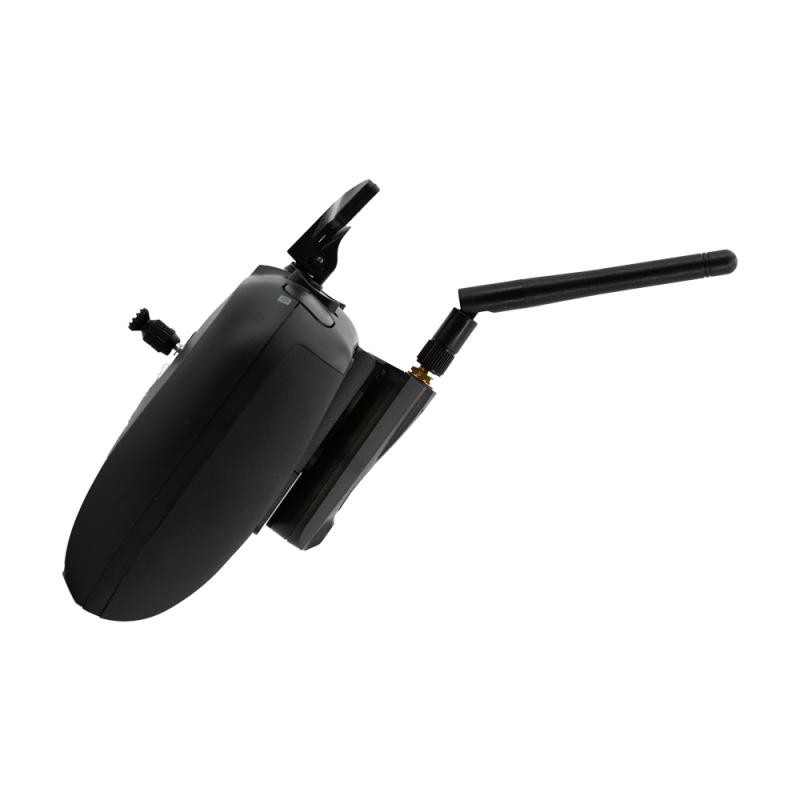

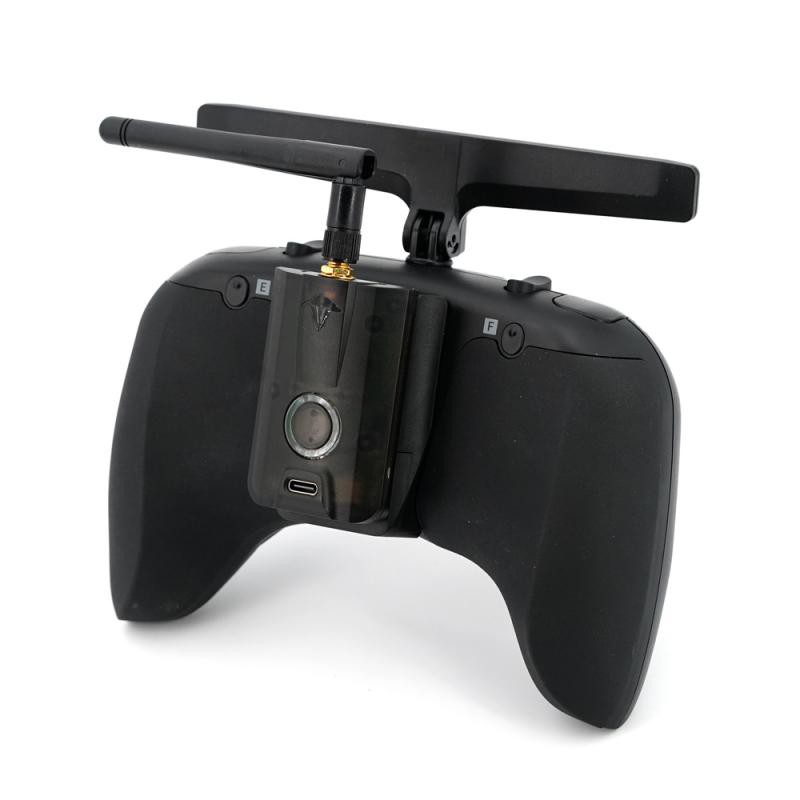

TBS Multi Protocol Module (MPM) Transmitter Module, compatible with OpenTX / FreedomTX for TBS Tango 2, X-Lite and X9 Lite (X9 lite needs adapter, sold separately)

The TBS MPM, designed in collaboration with RadioMaster, features the four main RF chipsets (CC2500, NRF24L01, A7105 and CYRF6936) all integrated in a single product. Thanks to OpenSource developers, compatibility with most common R/C protocols is provided through a single module, powered by OpenTX / FreedomTX. With an integrated RF amplifier, the module provides competitive range.

Firmware Upgrade

Download here...
Target: RadioMaster TX16S Internal Module (4-in-1)
Module Type: STM32 4-in-1

Specifications

Input voltage: 6-9v
Current: ~100mA
Operating frequency: 2.4GHz ISM band
RF power: +20DBM (100mW)
Main Chipset: STM32
Opensource Repo: Github
Model compatibility: Alphabetical List (external)
Firmware updatable via USB-C port
