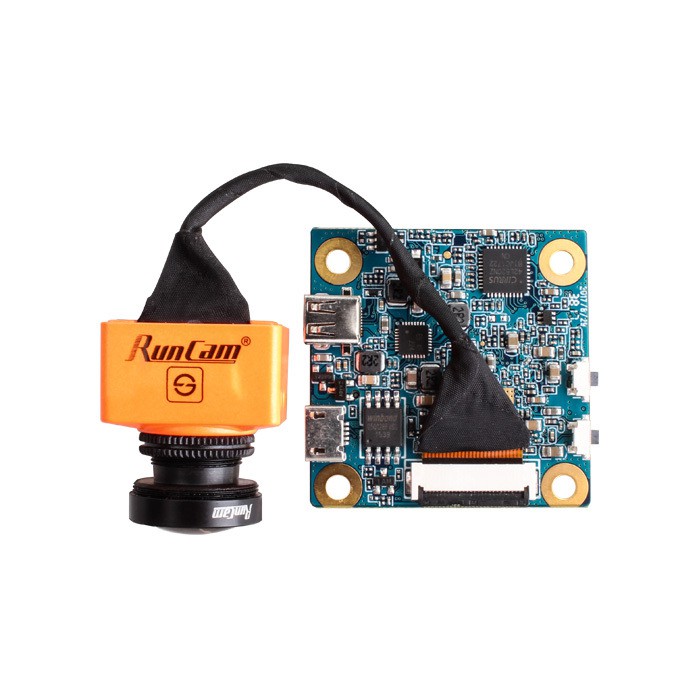

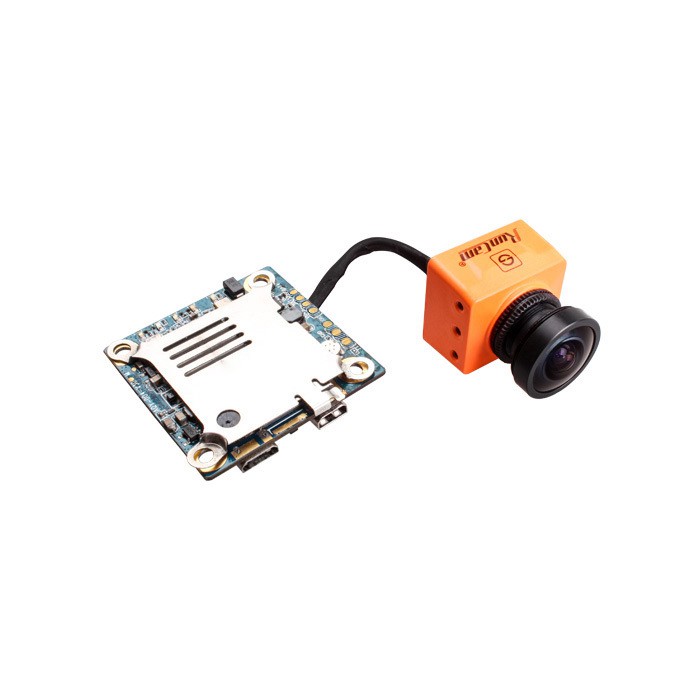

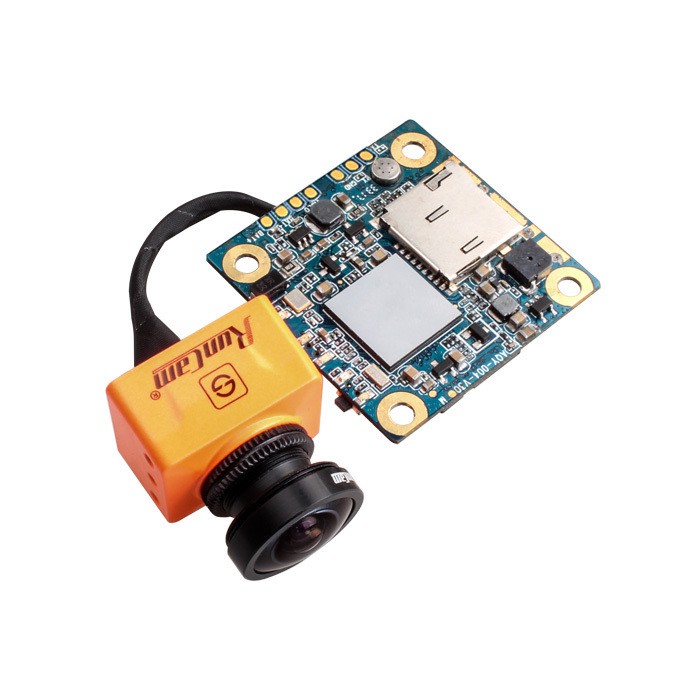

RunCam Split 2 HD FPV camera

This is the v2 Split. It has tolerant input voltage range, different SD card slot and WiFi module connection.

Birth of this camera marks the end of an era when the freestyler masters carried the heavy action cameras on their FPV drones. Goodbye to heavyweight HD camera, bulky HD camera mount, mesh of straps and zipties. Welcome to elegant, lightweight, integrated FPV-HD hybrid camera! Only add few grams for the extra PCB on top of your standard 30x30mm electronics stack for what will be your HD flight camera, always there, always ready.

Specs

• FOV angle: FPV FOV 130° / recording FOV 165° (GoPro lens)
• video resolution: 1080@60fps / 1080@30fps / 720@60fps
• video files : MOV
• image resolution: 2 megapixels
• TV output: NTSC (720x480) / PAL (720x576) switchable
• real-Time audio output: yes
• interface: Micro USB / UART
• max Micro SD card supported: 64G (Class 6 or above needed, Class 10/UHS-I/UHS-II recommended)
• WiFi module: YES (removable)
• dimensions: PCB 36x38 mm / lens module 22x20 mm
• power input: DC 5-15V / 5V from USB
• working current: 650 mA
• weight: 21g

Includes

1x camera (1x 90mm lens extension cable included)
1x WiFi module
1x 180mm lens extension cable

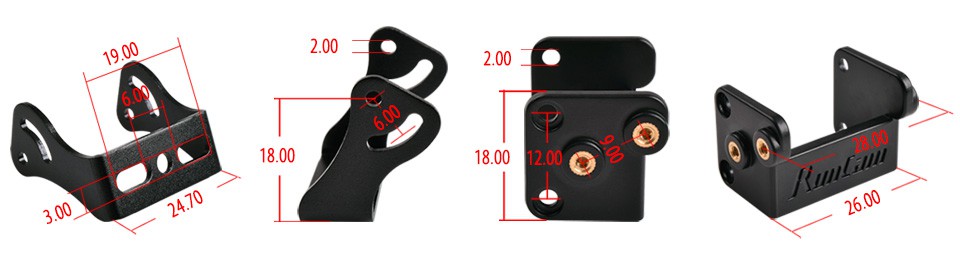

1x aluminum bracket
1x ABS bracket
1x 3pin FPV silicone cable
1x TV-out and power cable
2x set of screws
1x manual

User manual download
