FC Specifications

• MCU: 216MHz STM32F722RET6
• IMU: MPU6000 & ICM20602, Dual Gyros built-in (SPI)
• OSD: AT7456E (SPI)
• Blackbox: 32M-byte Flash memory (SPI)
• Baro: No barometer built-in.  support external barometer module (I2C)
• 5x Uarts (1,2,3,4,6) with build-in inversion
• 1x Softserial supported
• 8x Dshot/Proshot/oneshot outputs
• 1x I2C

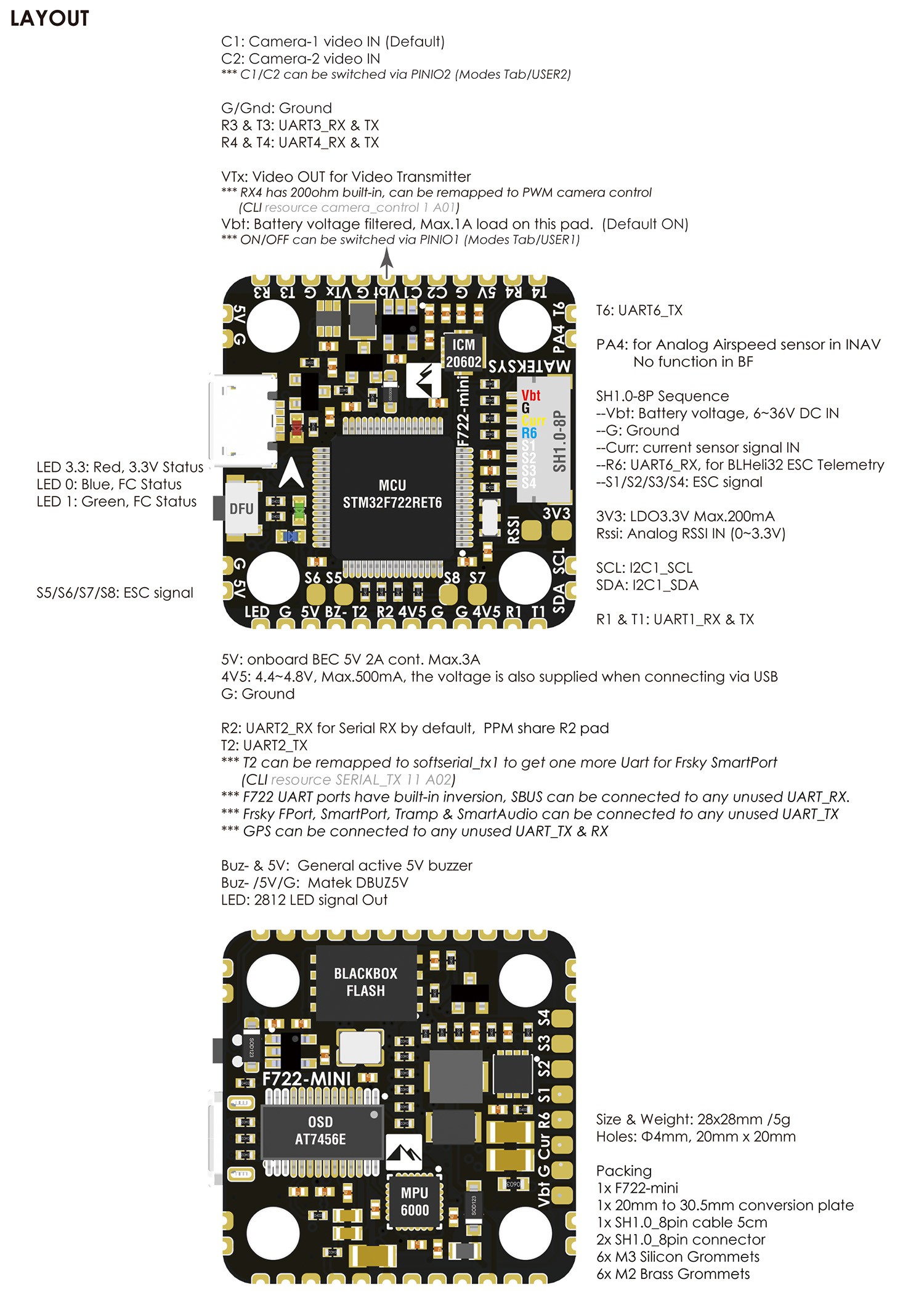

• 1x SH1.0_8pin connector (Vbat/G/Curr/R6/S1/S2/S3/S4)
• 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
• Vbat filtered output power for VTX switchable via AUX
• Dual Camera image switchable via AUX

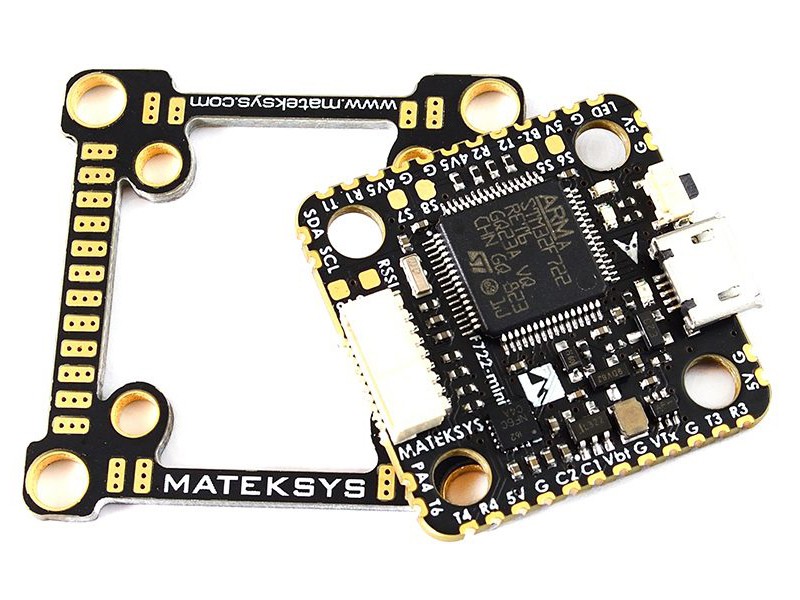

• Convertible 20mm to 30.5mm mounting
• Camera control: Yes
• Smartaudio & Tramp VTX protocol: Yes
• WS2812 Led Strip : Yes
• Beeper : Yes
• RSSI: Yes
• Additional ADC for INAV analog airspeed

PDB Specifications

• Input: 6~36V (2~8S LiPo)
• BEC: 5V 2A cont. (Max.3A)
• LDO 3.3V: Max.200mA
• Battery Voltage Sensor: 1:10 (Scale 110)
• No Current Sensor built-in, supports external current sensor of PDB/4in1

Physical

• Mounting

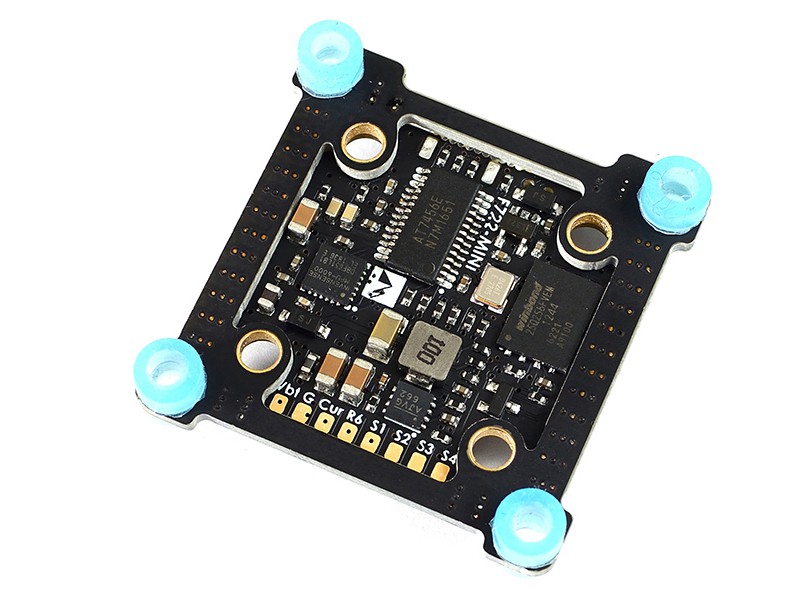

  20 x 20mm M3 with Silicon Grommets
  20 x 20mm M2 with Silicon & Brass Grommets
  30.5 x 30.5mm M3 with Conversion Plate and Silicon Grommets
• Dimensions:  28 x 28mm
• Weight: 5g

Firmware support

BetaFlight / INAV
Target: MATEKF722SE

Included

1x FC F722-mini
1x 20mm to 30.5mm conversion plate
6x Silicon grommets M4 to M3
6x Brass grommets M3 to M2
1x SH1.0_8pin cable 5cm
2x SH1.0_8pin connectors
