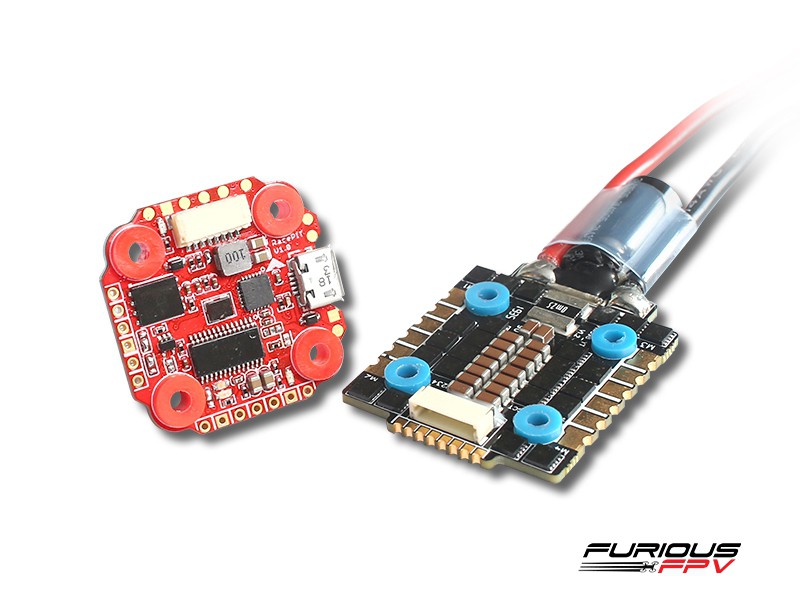

Furious FPV RACEPIT Mini and Hobbywing Xrotor 40A ESC combo

Furious FPV RACEPIT Mini and Hobbywing Xrotor 40A ESC combo
€99.00

Availability: In stock

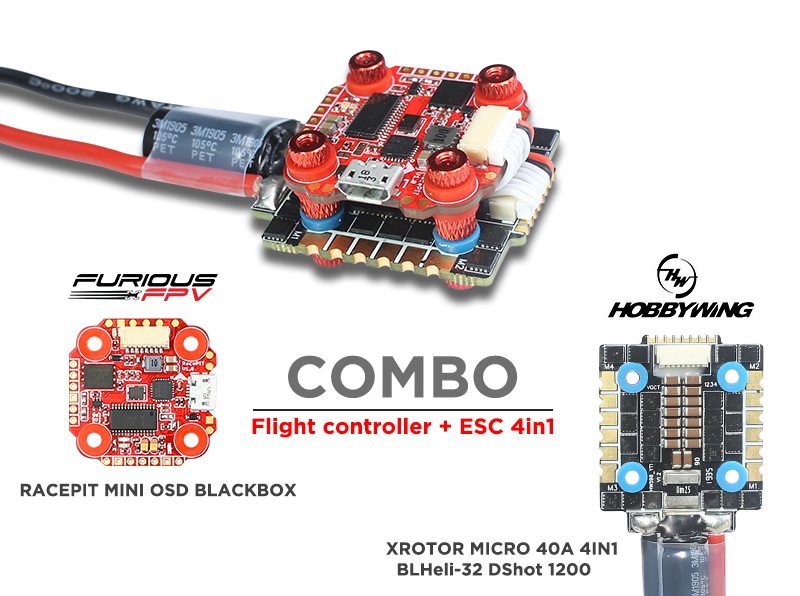

Powerful combo of 20x20 stack mount - Racepit Mini OSD Blackbox flight controller + Hobbywing 40A 6S BLHeli32 4in1 ESC
Description

Details

Features

  • built-in connector for 4in1 ESC + ESC solder pads
  • built-in power switch for VTX
  • built-in camera switcher
  • built-in 16MB blackbox flash
  • power from 5V or VBat
  • high quality 5V 2A BEC (2-6S)
  • built-in inverter for S.Bus and S.Port
  • integrated silicone dampers

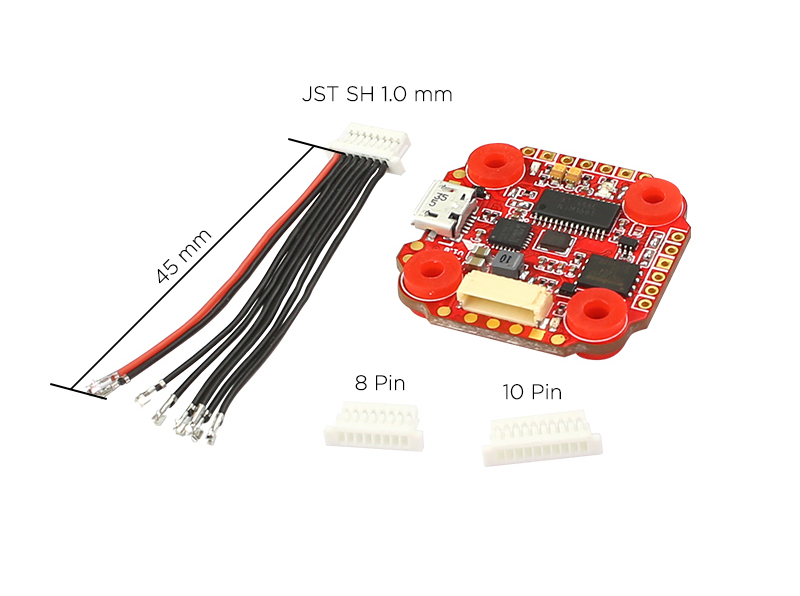

Specs - Racepit Mini flight controller

  • STM32F405 main chip
  • MPU6000 gyro
  • UART Ports: 6
  • BEC: 5V 2A 2S 7.4V - 6S 22.2V input voltage range
  • Mount holes: 20x20mm M3 with silicone dampers

Specs - XRotor Micro ESC

  • MCU: 32bit ARM 48Mhz
  • Firmware: BLHeli32, DSHot 1200 compatible
  • Mount holes: 20x20mm M3 with silicone dampers
  • Continuous / max power: 4x 40A / 4x 60A
  • Input voltage: 3-6S LiPo
  • Power lead: 14AWG with XT60 socket included
  • BEC: none
  • Dimensions: 40x33x5mm
  • Weight: 12g

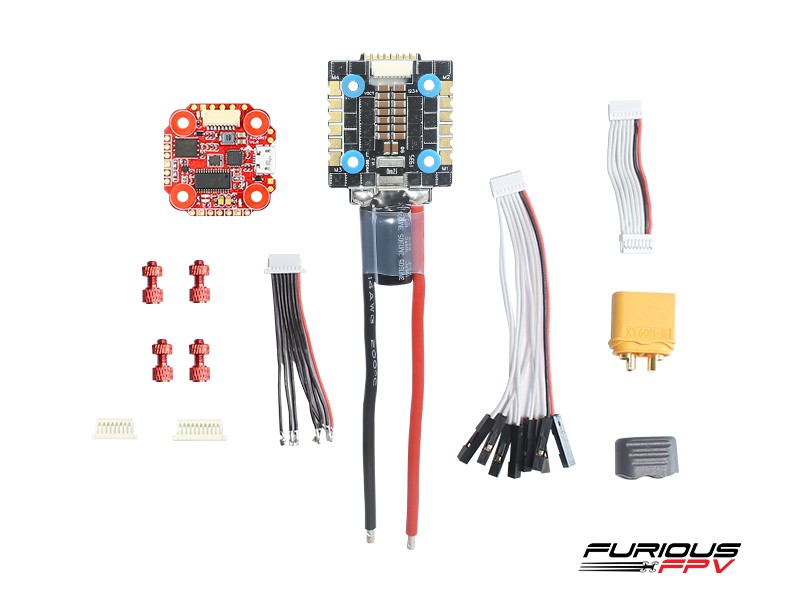

Includes

1x FuriousFPV Racepit Mini F4 Flight Controller
1x Hobbywing XRotor 40A Micro BLHeli32 ESC
4x damper M3
2x 4-in-1 ESC connection cable
1x XT60 power socket
4x M3 aluminium mounting hardware

Additional Information

Additional Information

Features PDB, OSD, BEC, Flash, Current Sensor, Voltage Sensor
Gyro MPU6000
Mount holes 20x20mm
Item weight (g) 9
