- Description
-
Details
The latest Tekko32 45A 4in1 ESC v1.2 has got some improvements on its performance:
- Enhanced BEC, withstand voltage up to 80V.
- The first blheli32 ESC in the market with default PWM output 96K giving you smoother and quieter experience.
- Amperage meter scale ratio has been adjusted to 185-195.
- The mounting hole has been changed into M4 with anti-vibration silicone grommet Insert.
- The PCB design uses a design in which the drive circuit and the control circuit are separated. This design broadens the overcurrent capability of the drive circuit, and at the same time reduces the electrical interference to the control circuit.
Features
32bit ESC with BLHELI32 firmware
Supports 3-6S lipo input
TLM supported

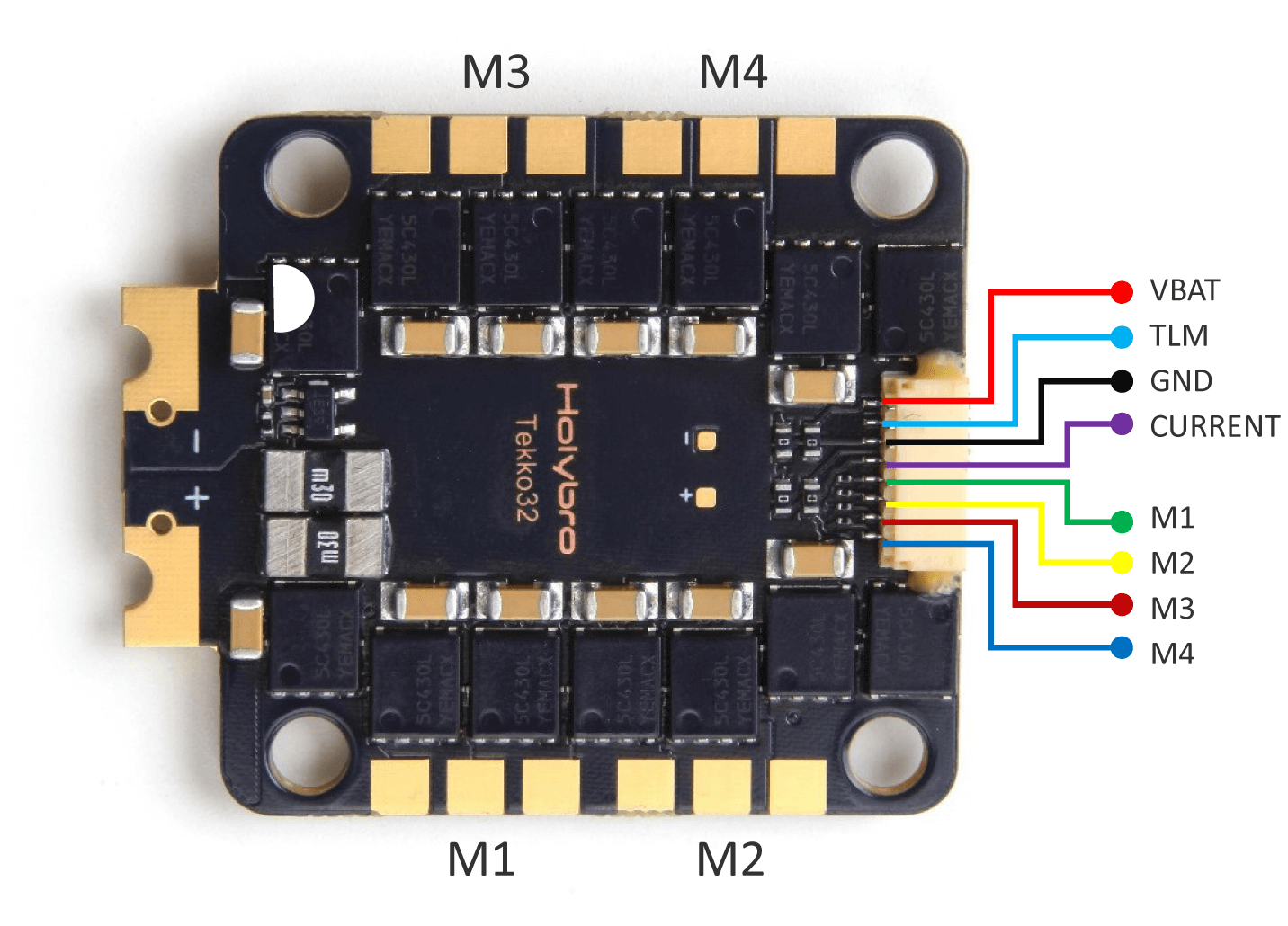

Voltage output (VBAT)
NO BEC
Signal support: PWM / Oneshot / Multishot / Dshot
Mounting holes: 30.5 × 30.5mm
Supports damped light
F3 MCU, runs double faster than F051
Extra Cap needed for high current or 6s usage
Dimensions: 44 x 37 x 6mm
Weight: 13.6gIncludes
1x Tekko32 F3 4in1(45A) ESC
4x M3 Anti-Vibration Silicone Grommet Insert
1x Electrolytic capacito: 1000uF 35v
1x 8pin to 8pin 1mm pitch 65mm cable
1x 8pin to 8pin 1mm pitch 25mm cableDownloads
BLHeli_32 ESC Firmware at GitHub
Tekko32 F3 4in1 ESC(45A) SPEC - Additional Information
-
Additional Information
Max amperage 45A Input voltage 3S, 4S, 5S, 6S Firmware BLHeli_32 Item weight (g) 14 Dimensions 44x37x6mm
