Specifications

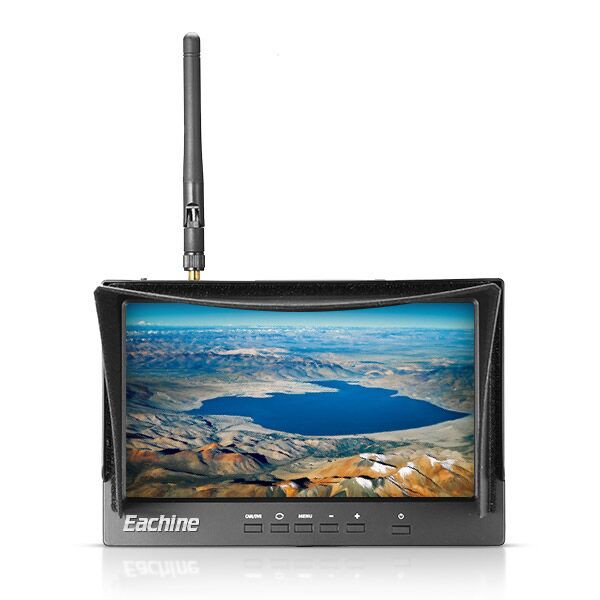

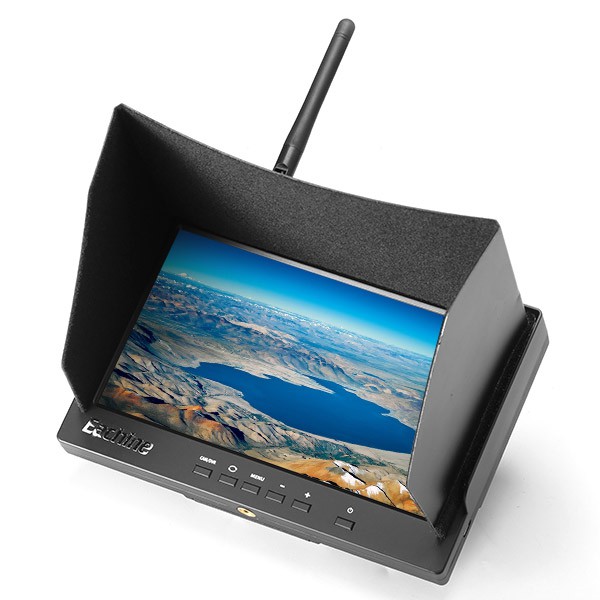

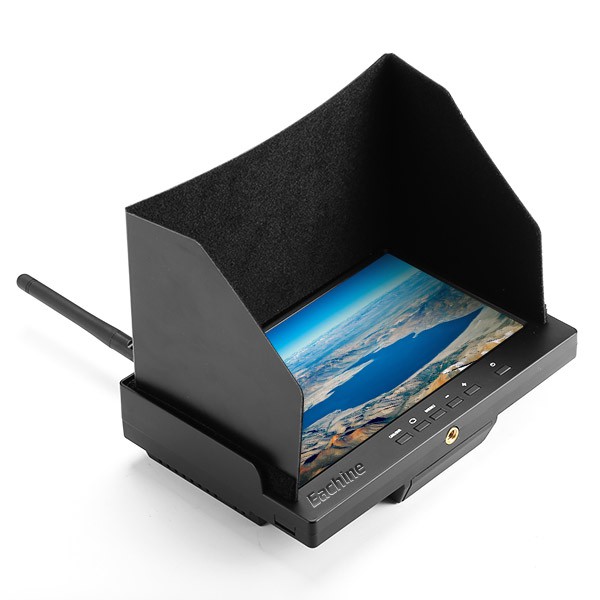

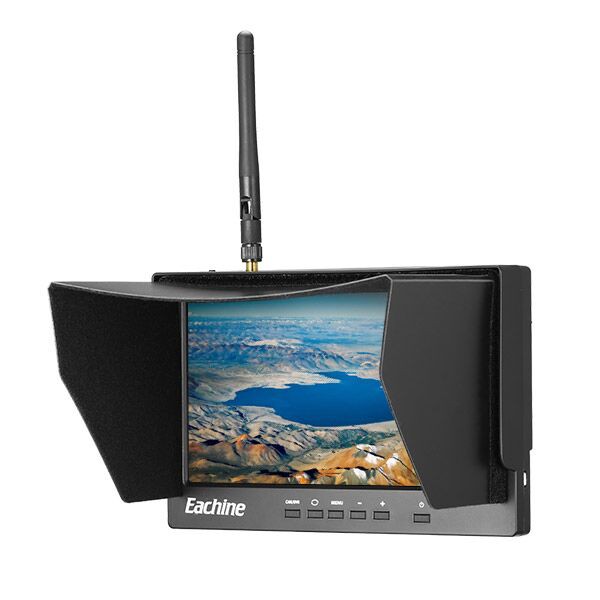

Item Name: LCD5800D Monitor
Screen size: 7 inch
Resolution: 800*480PIX
Visual angle: 140/120 degrees (horizontal/vertical)
Television system: AUTO
Sensitivity of wireless receiving
Antenna connector: SMA connector
DVR video resolution: 720P
DVR: Built-in TF Card, 64G MAX videotape, images can be acquired and recorded in real time (TF should be bought independently)
Playback support
Sound recording: Not supported
System lithium battery: 1300mA/7.4V (removable)
Automatic search signal: yes
Charging interface: Micro USB (support portable source)
Standly current (6.2V-8.4V)
Working voltage: 2s 7.4V
Starting current: 980mA-740mA
Soft-off current: 360mA-420mA
Hard shutdown current: 0mA
Standby time: 104MinFeatures
- With DVR function
- 5 Bands and total 40 Channels
- Built-in battery, easy to carry and use outdoors
- A key to automatic signal search, simple operation
- Specific PIP, screen shots
- 7 Inches HD LCD 800X480 Pixel
- TV System AUTO
- Video Resolution 720P
- Micro USB online upgrade
- Micro TF Card support (64G max)
Band and Channel selection

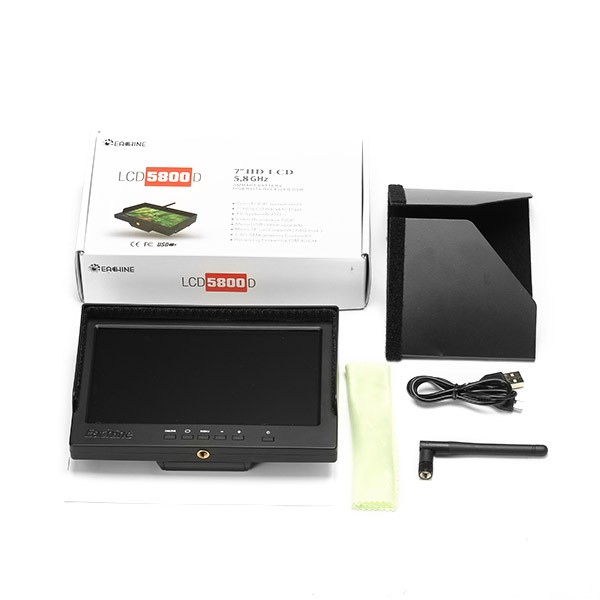

CH CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8 GROUP A 5865 MHZ 5845 MHZ 5825 MHZ 5805 MHZ 5785 MHZ 5765 MHZ 5745 MHZ 5725 MHZ B 5733 MHZ 5752 MHZ 5771 MHZ 5790 MHZ 5809 MHZ 5828 MHZ 5847 MHZ 5866 MHZ C 5705 MHZ 5685 MHZ 5665 MHZ 5645 MHZ 5885 MHZ 5905 MHZ 5925 MHZ 5945 MHZ D 5740 MHZ 5760 MHZ 5780 MHZ 5800 MHZ 5820 MHZ 5840 MHZ 5860 MHZ 5880 MHZ R 5658 MHZ 5695 MHZ 5732 MHZ 5769 MHZ 5806 MHZ 5843 MHZ 5880 MHZ 5917 MHZ Package includes
1 x LCD5800D Monitor
1 x 5.8G Antenna
1 x USB Cable
1 x User Manual
