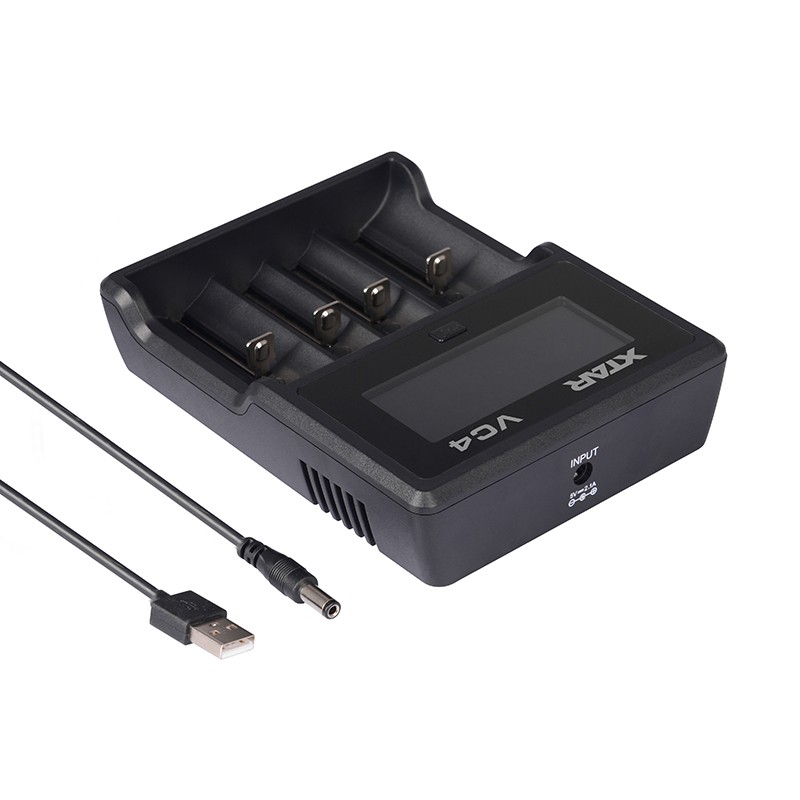

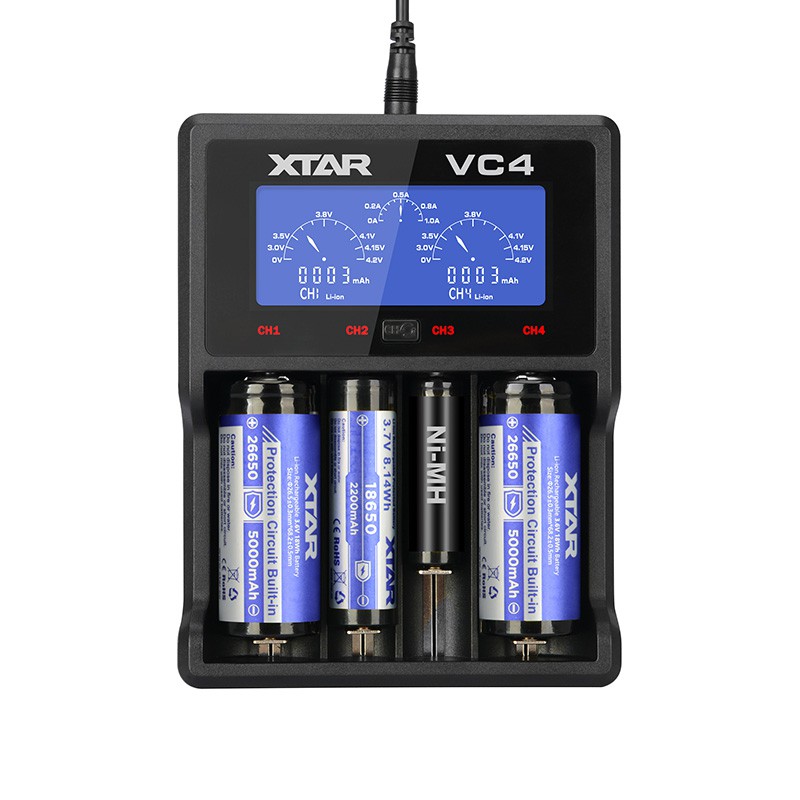

Xtar VC4 Li-Ion NiMH charger

More Views

Xtar VC4 Li-Ion NiMH charger

Availability: Out of stock

Charger for Lithium-ion and Ni-MH Batteries



  • detect battery capacity
  • digital instrument panel can display the current and voltage readings
  • optimizing battery life (TC/CC/CV for Li-ion and pulse charging for Ni-MH)
  • four independent channels can charge Li-ion and Ni-MH/Ni-CD cells at the same time
  • DC USB charging port
  • 0V activation function can revive and charge "dead" batteries
  • automatic cut-off at 4.2V when battery is fully charged
  • full safe system: reverse-polarity, overcharge, short circuit and overheat protection
  • current buffering technology: current is gradually increased to reduce high-current impact on batteries
  • flame retardant material


  • Input: DC 5.0V 2.1A
  • Charge current options: 4x 500mA / 2x 1000mA
  • Cut-off voltage for Li-ion battery: 4.2V +- 0.05V
  • Cut-off voltage for Ni-MH battery: 1.45V +- 0.1V
  • Activation/Trickle current: 100mA
  • Operating temperature: 0-40°C
  • Net weight: 210 g
  • Size: 149 x 115 x 35 mm


1x charger
1x USB power cable
1x textile storage bag
1x quick start manual
