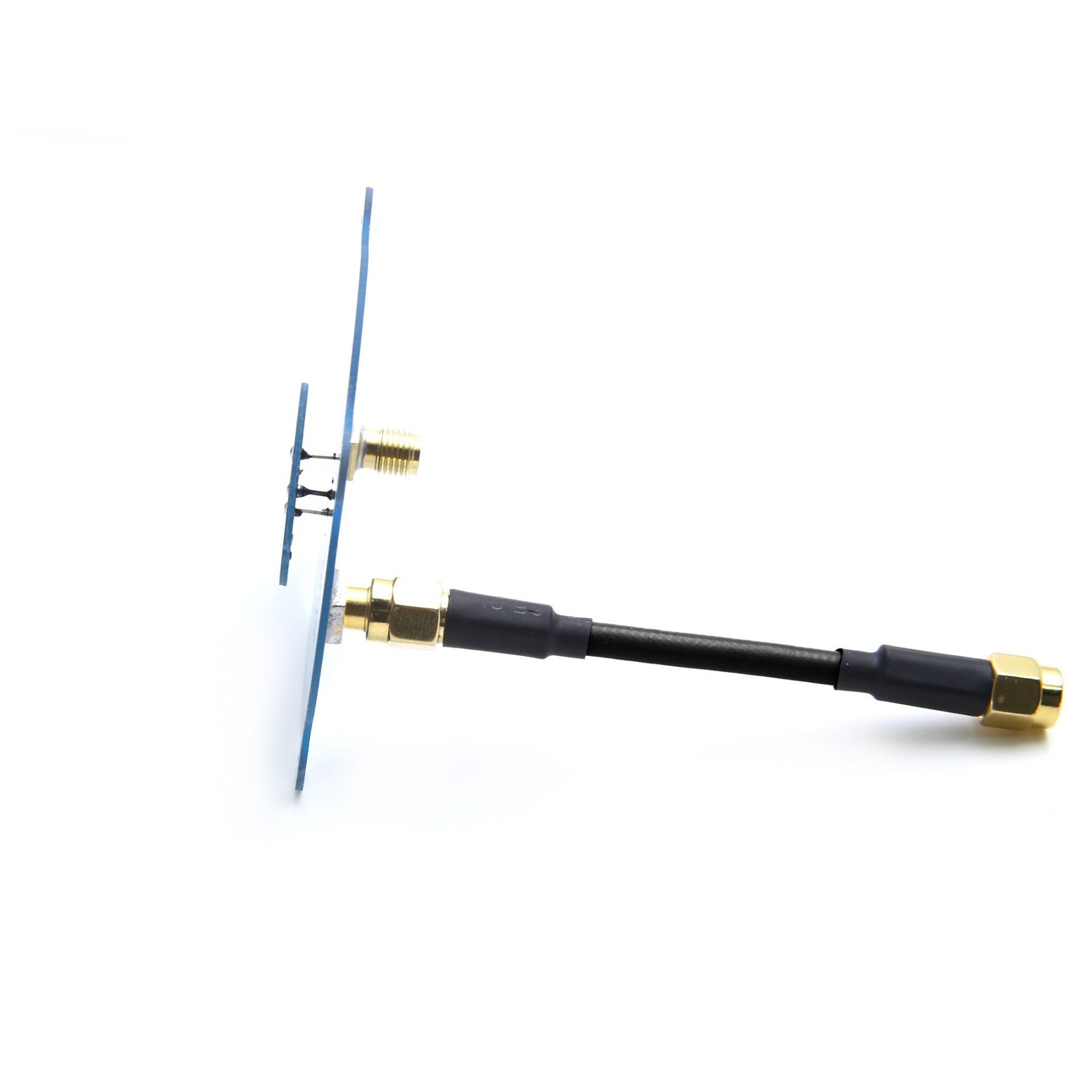

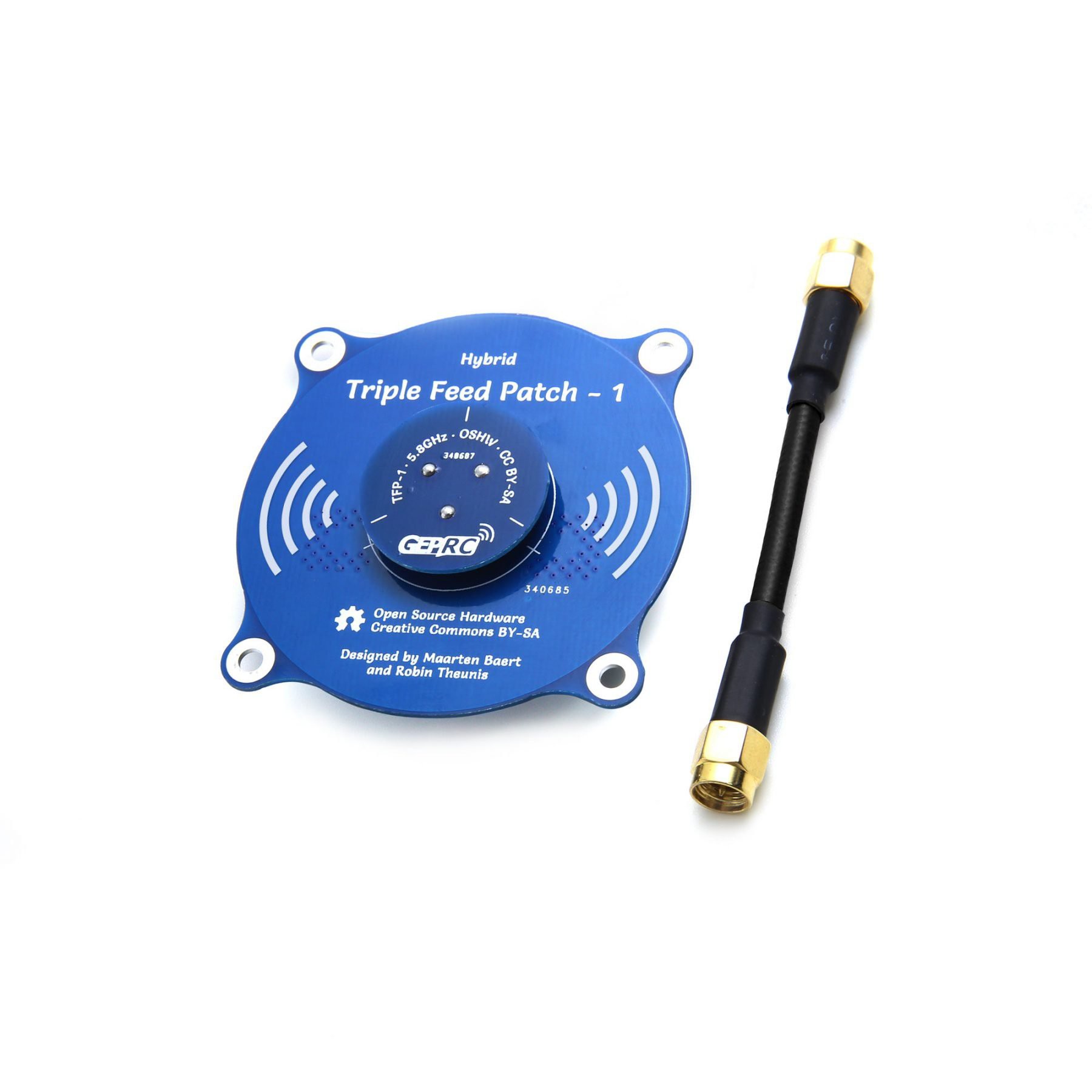

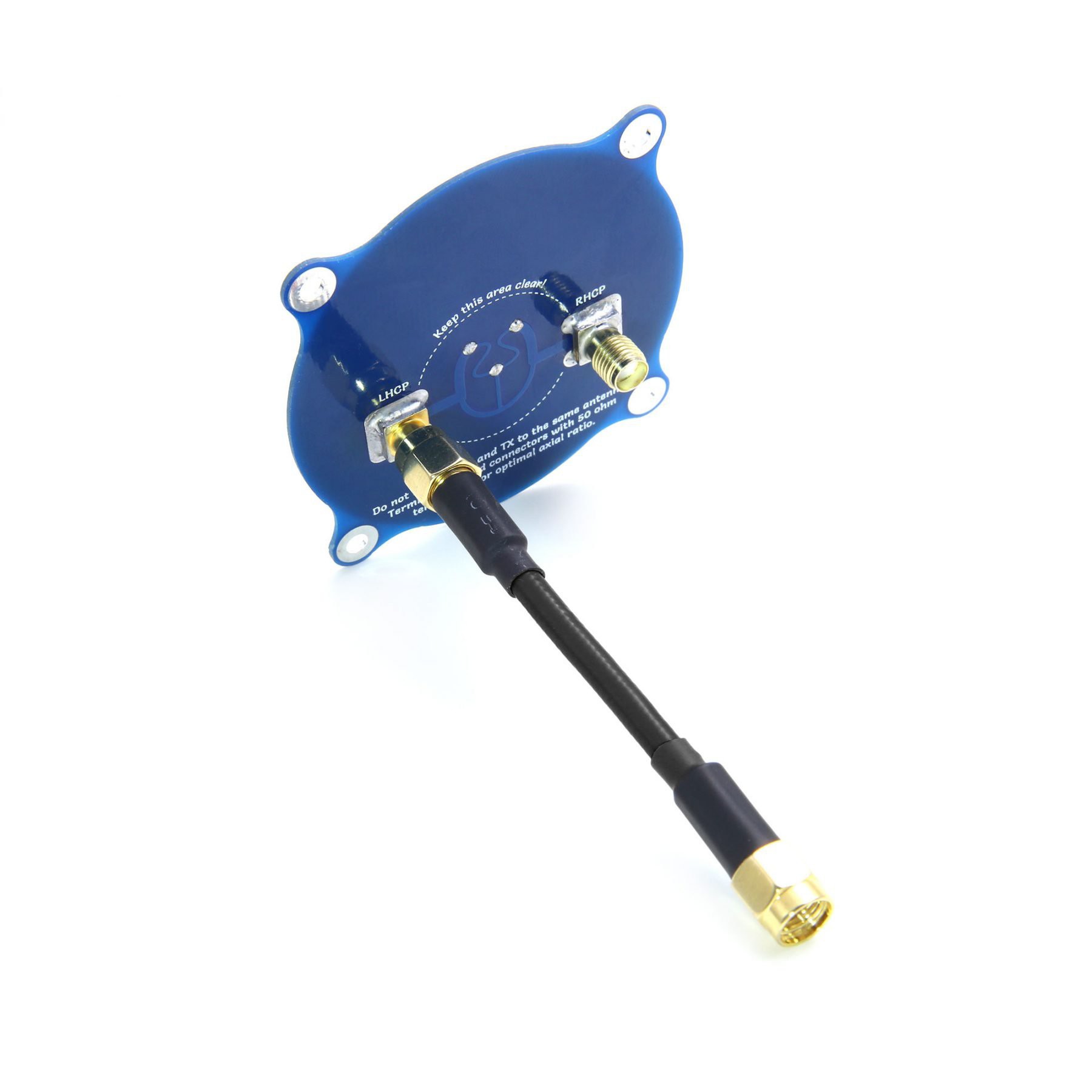

GEPRC Triple Feed Patch 1 FPV RX antenna

More Views

GEPRC Triple Feed Patch 1 FPV RX antenna
€19.90

Availability: Out of stock

5.8 GHz 9.4dBi high gain RX antenna. Single antenna to be used for both RHCP and LHCP signal.
Description

Details

Specification

Center frequency: 5.8 GHz
Bandwidth: 660 MHZ (5.47-6.13ghz)
Match: S11 < -20 dB, VSWR < 1.22 (at the center frequency)
Axial ratio: < 1.3
DBi antenna gain: 9.4
Half power beam width: 55 ° (horizontal and vertical)
Radiation efficiency: 83.5%

Includes

1x Antenna
1x SMA Extension Cable
1x Pouch

Additional Information

Additional Information

Polarization No
Antenna connector SMA
Frequency 5.8 Ghz
