Furious FPV INNOVA V4 OSD-VTX adjustable 25/200mW board 20x20mm

More Views

Furious FPV INNOVA V4 OSD-VTX adjustable 25/200mW board 20x20mm

Availability: In stock

Get ready to change the way you FPV with the all new Furious FPV INNOVA VTX-OSD board.



Ultra small, light in weight and packed with full of FPV goodness, the INNOVA V4 adds Adjustable Power Output to the mix, allowing racers to vary VTx power from 0.1mW / 25mW / 200mW. The ultra low 0.1mW Pit Mode functionality allows for calibration and tuning while you gear up for the next race.Further this with Stealth Mode power up, you can set your fears aside when powering up your machine, keeping your VTx offline while you system comes up to speed.

Incorporating our proprietary in-house True Vision system, True Vision can run via Chrome, and unlike most complex MWOSD software systems, True Vision is ultra simple, supporting VTx setup, connecting through BetaFlight Passthrough, FTDI, and more.

Simplification is the key and functionality is the game. With the INNOVA V4, adjustability is at your fingertips, allowing VTx power up & shut down via your transmitter, and the ability to select power, band, and channel with a press of a button. Combine this with features like a built-in LC Filter, RaceBand, and InRush Voltage Protection Input / Output via Transient Voltage Suppressor, the INNOVA V4 is the VTx that blows the competition out of the skies.

When it comes to VTx power, functionality and absolute brilliance, Furious FPV provides the next step in ultimate user friendliness with insane feature pack that you won't want to live without when it comes to FPV.


  • Mini Size: 27mm x 27mm w/ 20mm x 20mm Mounting Holes
  • Stackable w/ PikoBLX FC, PikoF4 FC & All 20mm x 20mm FC's
  • Adjustable VTx Power Output - 0.1mw / 25mW / 200mW
  • Race Ready w/ 25mW Raceband Functionality
  • 0.1mW Pit Mode for Worry Free Flight Line Tuning
  • Stealth Mode Power Up
  • Power On & Off VTx via Transmitter
  • Integrated MWOSD Functions
  • PID Tuning Capable
  • 40 Channel / 5 Band 5.8GHz Frequency Range
  • Select Power / Band / Channel at a Touch of a Button
  • HV Input Voltage from 2S 7.4V - 5S 18.5V
  • Built-in LC filter for video clarity
  • FuriousFPV TRUE VISION software
  • Inrush Voltage Protection Input and Output by Transient Voltage


Innova V4 OSD/VTX x 1pc
Linear Antenna x 1pc
4pin silicon cable for Innova V4 x 1pc


Size: 27mm x 27mm
Mounting Holes: 20mm x 20mm
Frequency Range: 5.8GHz (5) band (40) Channel w/ RaceBand 5325-9945MHz
Input Voltage: 2S 7.4V - 5S 18.5V
VTx Power Output: Selectable - 0.1mW / 25mW / 200mW
FuriousFPV 60mm 5G8 IPX/UF.l Connector Linear Antenna

Additional Information

Additional Information

Frequency 5.8 Ghz
Power (mW) 25mW, 200mW
Antenna connector U.FL

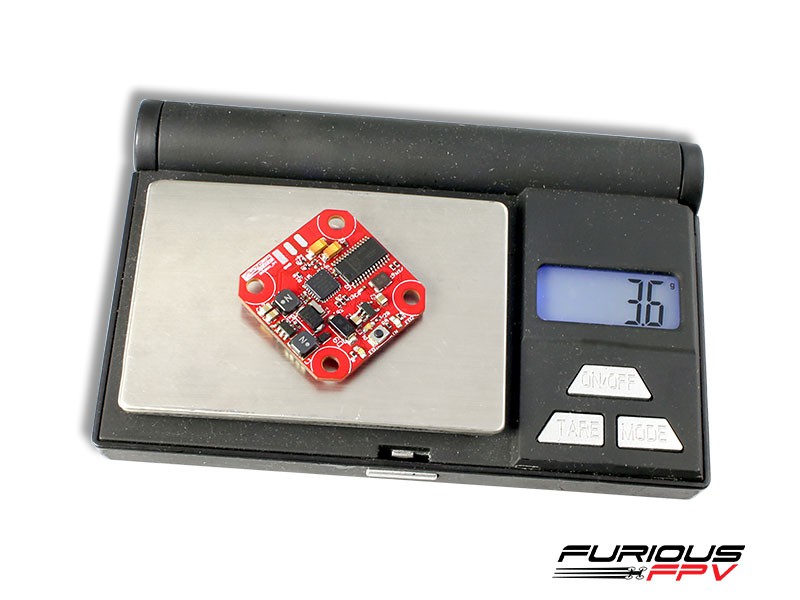

Item weight (g) 3.6
Dimensions 27 x 27 x 7mm
