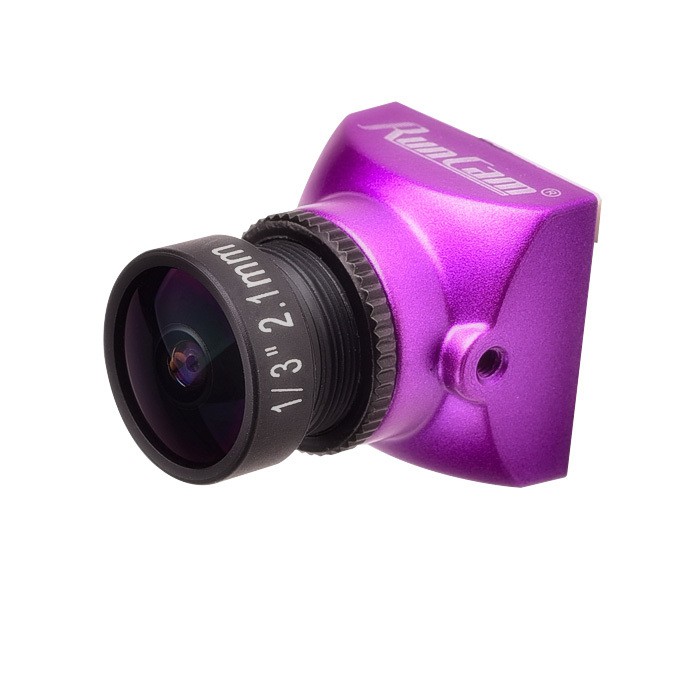

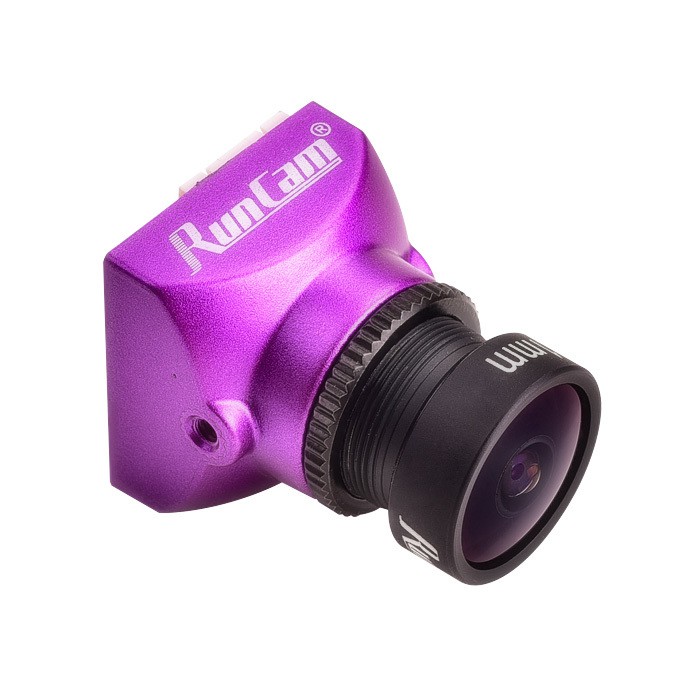

RunCam Micro Sparrow 2 Pro FPV Camera

Lens options

• 2.1mm​ lens (M12)​ ​- FOV150°
• 1.8mm lens (M12) - FOV165° (not available yet)

Specs

• Image Sensor: Super WDR CMOS Sensor
• Horizontal Resolution: 700TVL
• Lens: 1.8mm FOV 165° / 2.1mm FOV 150°​
• Screen Format: 4:3
• Signal System: PAL
• Mirror/Flip: Available
• Integrated OSD: Yes
• One Touch Scene Setting: Personal / Lightrax / Outdoor / Indoor / Cloudy / Twilight
• S/N Ratio: >50dB
• Electronic Shutter Speed: Auto
• Min. Illumination: 0.01Lux@1.2F
• WDR: Super WDR
• Day/Night: Auto
• Power: DC 5-36V
• Current consumption: 40mA@12V / 110mA@5V
• Housing Material: ABS
• Net Weight: 1.8mm 8.5g / 2.1mm 9.9g
• Dimensions: 1.8mm L19mm x W19mm x H23mm / 2.1mm L19mm x W19mm x H25mm

Includes

1x Camera
1x Aluminum bracket
1x 2 set of screws
1x 6pin FPV silicone cable
1x OSD board
1x Manual

User manual (PDF)
