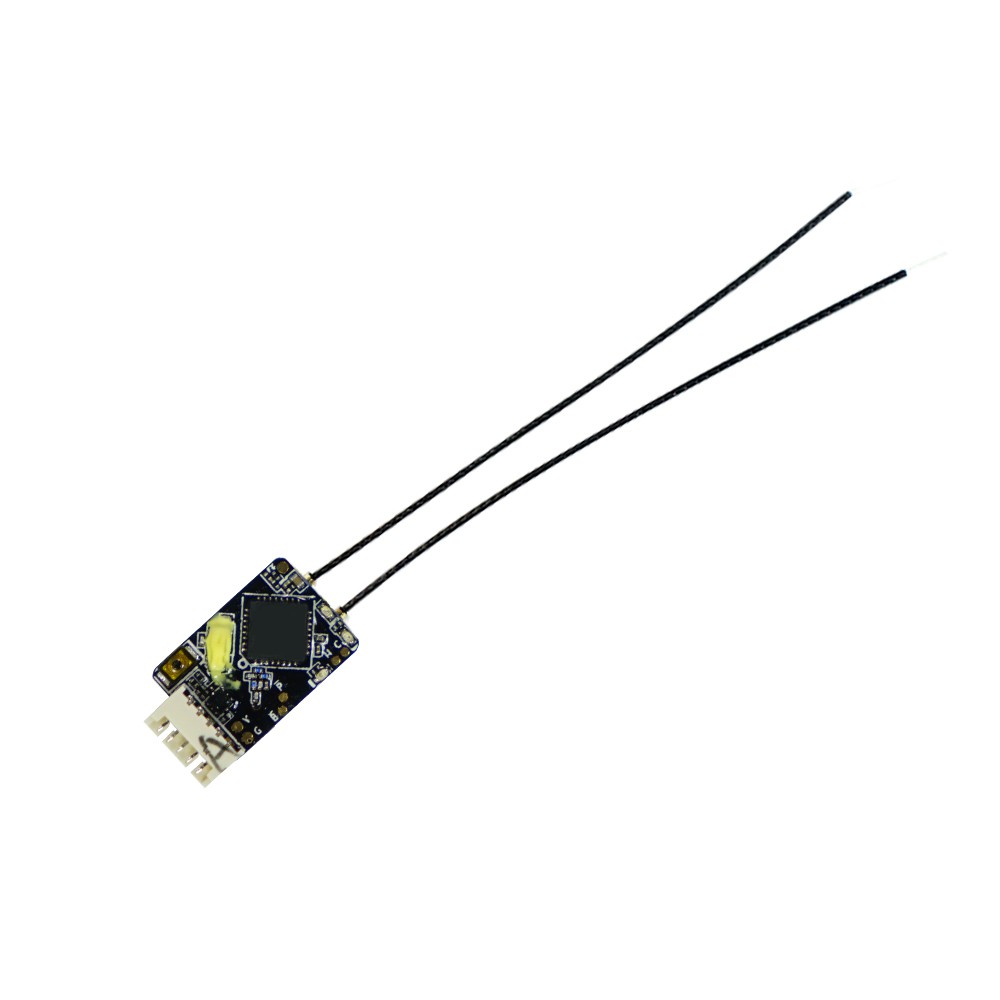

Frsky R-XSR 16ch micro full range telemetry receiver

FrSky ultra mini receiver R-XSR is the evolution of FrSky full range XSR receiver. The R-XSR is a standalone receiver with all the functions of XSR, in addition, it’s almost 1/3 size and 1/3 weight of XSR receiver. Moreover, there redundancy function is integrated into this tiny receiver ensures the security, and the IPEX connector makes it more convenient for you to replace antennas.

Features

• Ultra mini size and light weight
• Support telemetry and Smart Port enabled
• Full range
• Switchable SBUS/ CPPM signal output
• Supports redundancy function
• IPEX connector, replaceable antennas

Specs

• Dimension: 16*11*5.4mm (L*W*H)
• Weight: 1.5g
• Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)
• Operating Voltage Range: 3.5V~10V
• Operating Current:70mA@5V
• Firmware Upgradable
• Compatibility: FrSky X Series modules and radios in D16 mode
