- Description
-
Details

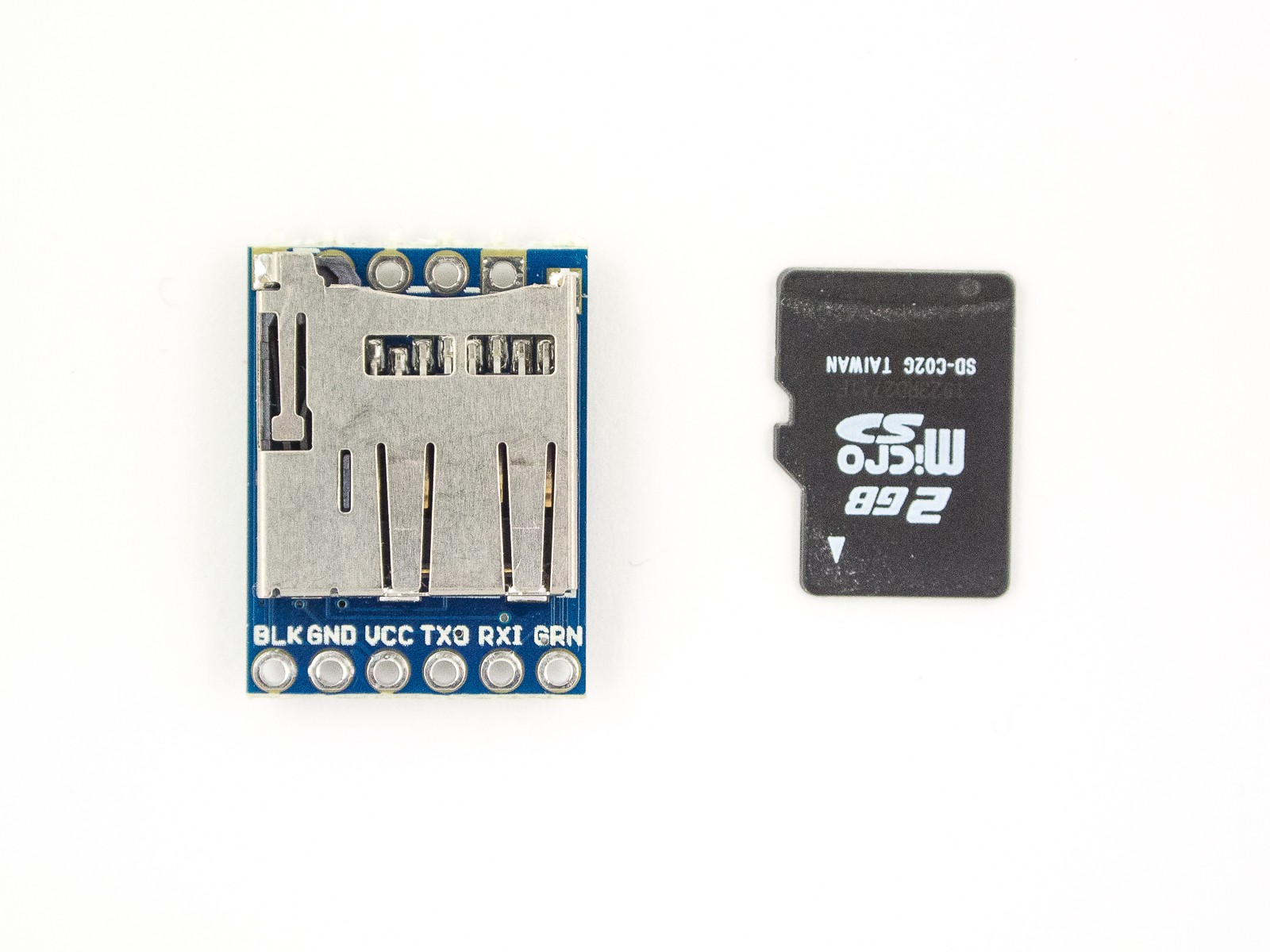

microSD slot for FAT16/32 cards up to 16GB
Configurable baud rates (2400 to 115200bps)
Power, ground, and RX-I are the minimum connections

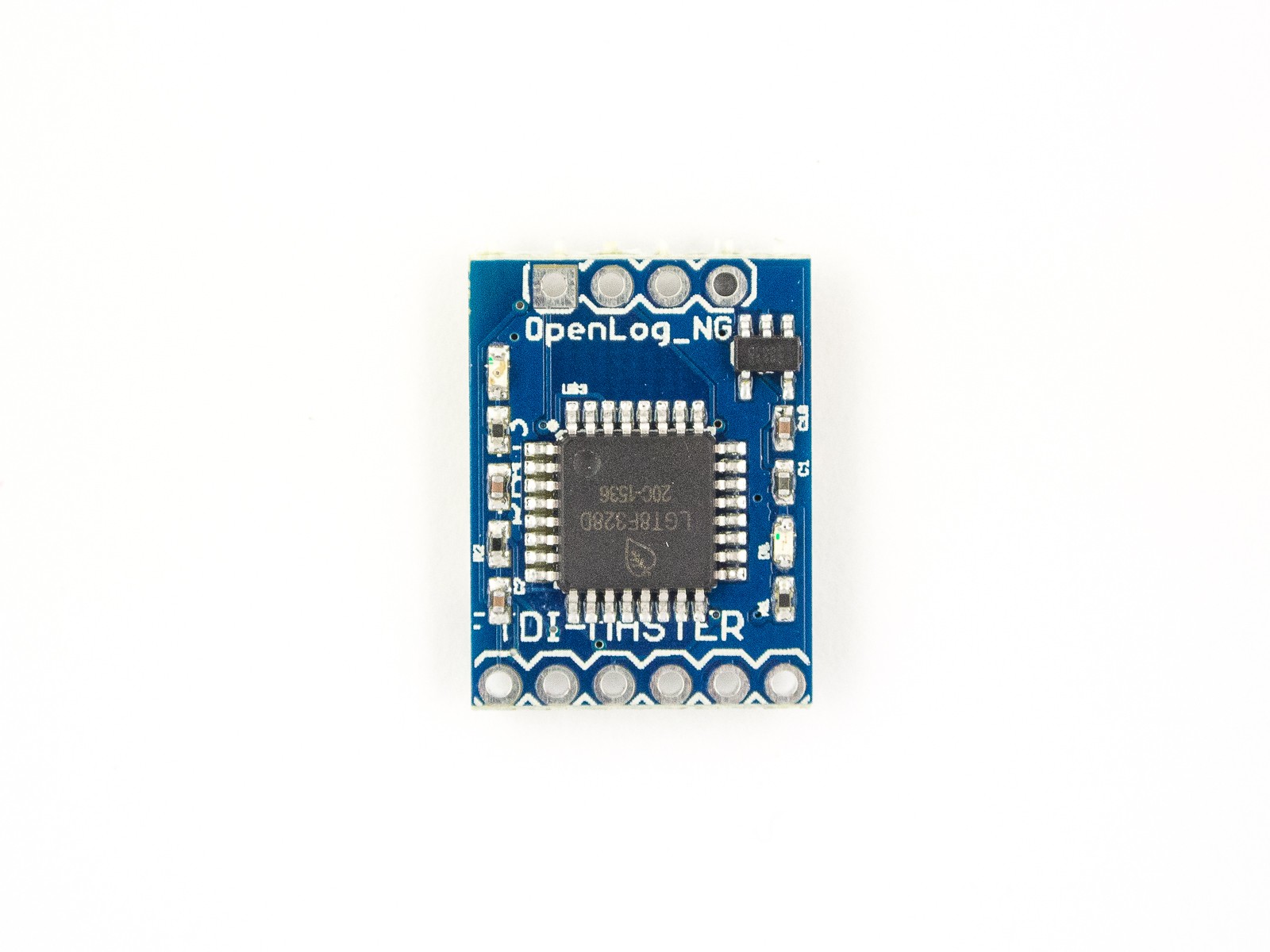

Reprogrammable ATmega328 using the Arduino IDE
Two LEDs indicate writing status
Input voltage: 5V
Power consumption: 2mA idle, 6mA at max
Size: 15 x 19 x 4mm - Additional Information
-
Additional Information
Function No Item weight (g) 2
