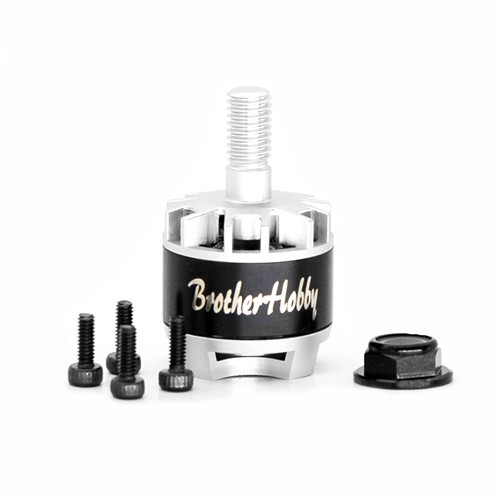

Brotherhobby Tornado T1 1407 3600kv

More Views

Brotherhobby Tornado T1 1407 3600kv

€15.95

Availability: Out of stock

Pioneer of 1407 size this motor is still relevant among sub-5-inch builds. This is original 3600kv variant that suits well with super lightweight 4" prop or heavy bladed 3" on 4S.

Description

Details

There are number of tests and experiments in the Internets - people running this motor even with 5". Traditionalists would rather put a light 4045 two-blade on it. When going with 3" then you have freedom to take the most agressive prop you can find. This motor will handle it all!

Tests

4S Static Thrust Tests
3S-Thrust Tests
Lumenier 3x4x3 & GF5030 4S Prop More Props GF3035x4 DAL T3545BN
by EngineerX

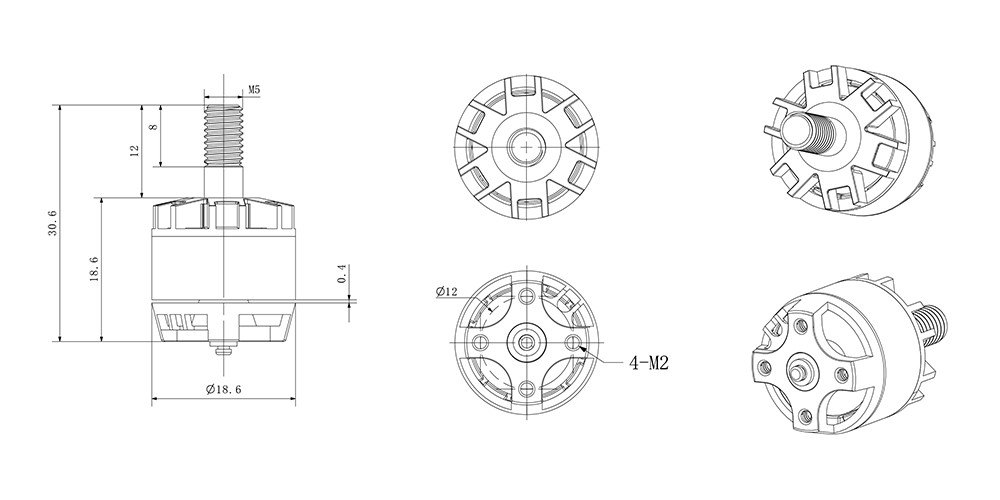

Specs

Model: Tornado T1 1407
KV: 3600kV
Weight: approx. 15g
Wire AWG: 26AWG
Stator Diameter: 14mm
Stator Height: 7mm
Rotor: 1.5mm N52H (arc magnets)
Casing Material: Al 7075
Shaft Diameter: 2mm
Configuration: 9N12P
Motor Diameter: 18.6mm
Motor Height: 30.6mm
Prop Adapter Shaft Thread: M5
Input voltage: 3S-4S (12.6 - 16.8v)
Bolt Pattern: M2 (12mm)

Additional Information

Additional Information

Size	14x7 mm
Kv	3600
Item weight (g)	15
Color	Silver
