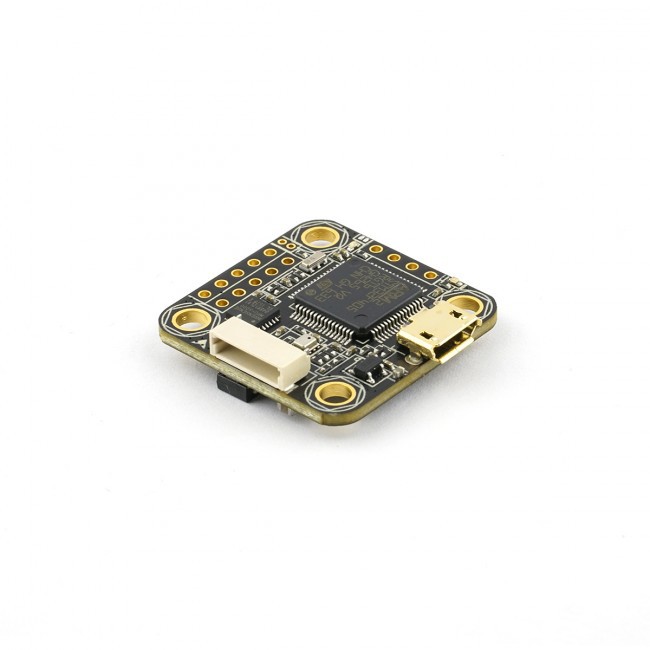

Omnibus F4 Nano v3 flight controller 20x20mm

OMNIBUS F4 in NANO format, mount holes 20x20mm

F4 MCU controls OSD over SPI bus, onboard PDB, 2-4S BEC.

OSD Configuration via Betaflight GUI.

5V2A BEC onboard (2-4s) recommended 1A max.

MPU6000 at SPI bus.

Features

• STM32 F405 MCU
• SBUS/PPM input (pinheaders)
• 4PWM output (1-4 pinheaders and Sh1.0 Plug)
• Dimensions 25x25mm
• Mount holes 20x20mm
• Incl. Barometer BMP280
• Onboard voltage sensor
• Built in L-C filter to provide clean power to FPV
• SPI Sensor MPU6000
• 2-4S Lipo Direct power

Includes

1x flight controller
