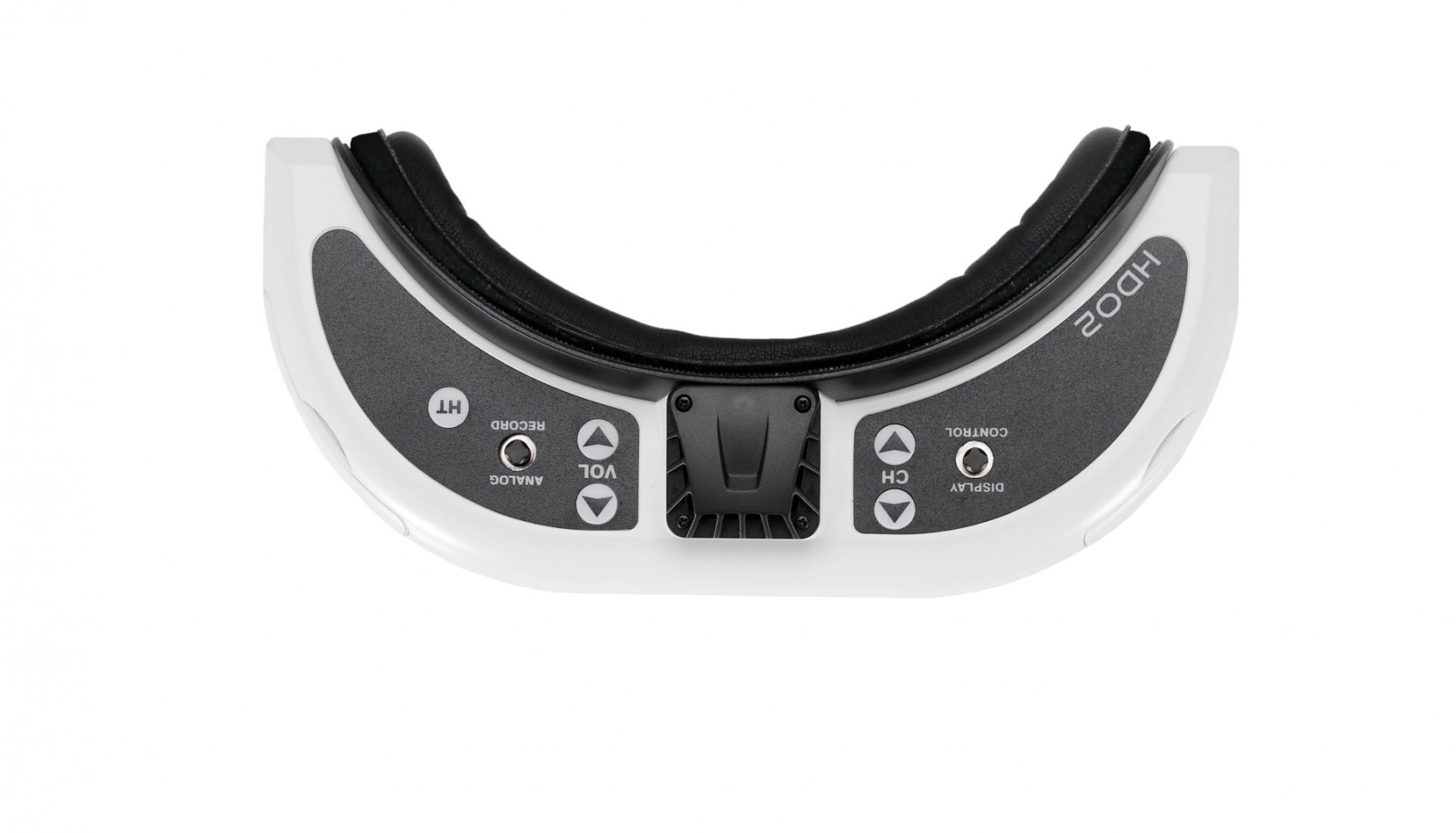

The Dominator HDO2 headset launches as the successor to the much-loved Dominator HDO. The HDO2 uses big 1280 x 960 OLED panels to provide a dramatically improved image with a 46-degree field of view. Display customization is now possible using a new OSD with expanded controls. The HDO2 can be further personalized with adjustable focus, adjustable IPD, adjustable face plate curvature, selectable image ratio, and a configurable power button. The HDO2 is the perfect headset for an experienced pilot looking for the best flight experience.

Specifications

• Optics:
• FOV (field of view): 46 degrees diagonal
• IPD (interpupillary distance): 54 to 74 mm (adjustable)
• Focus: +2 to -6 diopters (adjustable)
• Display:
• Two Sony 0.5” OLED displays
• Resolution 1280 x 960
• NTCS/PAL auto selecting
• AV Mode 4:3
• AV Mode 16:9
• HDMI Mode 16:9
• Audio: Stereo
• User Controls:
• Channel Selection
• Volume Control
• Mode Selection
• Display Control (Brightness and Contrast)
• DVR Control
• Power Button / Fan Control
• Electrical:
• Power Supply: 7 – 13V input voltage (2S – 3S Supply)
• Power Consumption: TBD
• Analog DVR: MicroSD support to 32 GB
• Record Rate: 6Mbps (MJPG compression, 30 fps, AVI)
• File playback (native recording, no codec support)
• Upgradeable via SD card
• Battery: 7.4V, 1.8A 18650 Battery Case (optional)
• Interface:
• 3.5mm AV in/out port
• Power input port
• 3.5mm 3p earphone port
• MicroSD
• RF Module Bay
• HT connector 3 pin internal connection
• Power Button
• Mechanical:
• Ergonomic molded headset w/ adjustable headband
• Dimensions: 169.2 x 80 x 45.5 mm
• Weight: 206.8 g

Included

Zipper carry case with updated branding
Fat Shark 18650 Battery Case

The Fat Shark 18650 pack with a row of stylish blue LED indicators allows you to visually check remaining capacity (4 levels) to prevent a sudden power/vision lost. It seats securely in the headset strap pocket. The soft silicone battery cable extends out of the top of the pack to avoid contact with head strap. Barrel connector cable features high strand count wire for flexibility and long life. Wire stress is minimized by the additional rubber gasket around the cable exit. 18650 Batteries are not included.

Downloads

Specifications and Manual
