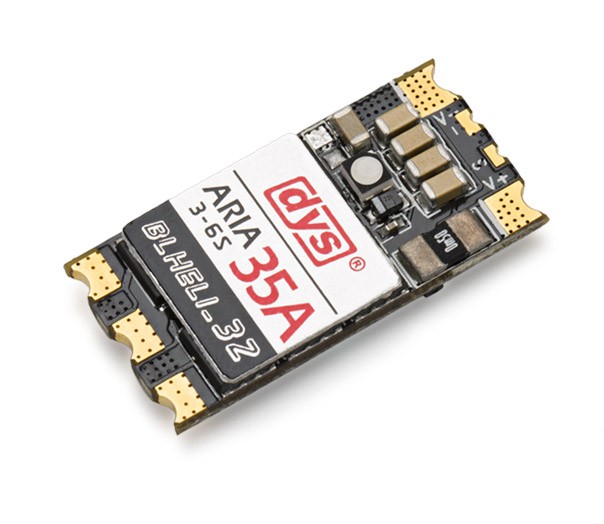

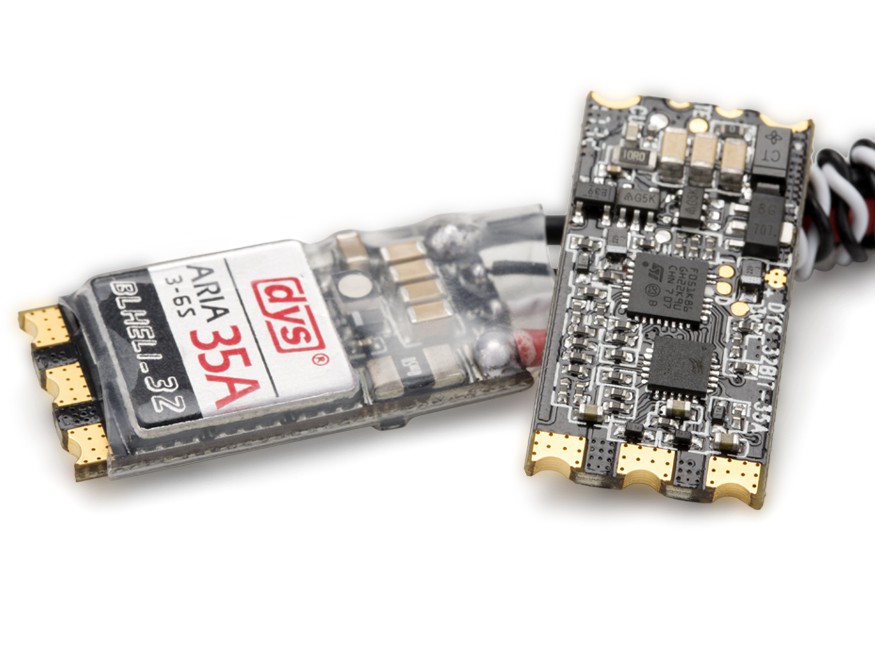

DYS Aria 35A BLHeli_32 ESC max 6S

More Views

DYS Aria 35A BLHeli_32 ESC max 6S

Availability: Out of stock

Top of the line full featured BLHeli_32 ESC.



  • BLHeli_32 firmware
  • 32bit ARM Cortex MCU STM32F051 48Mhz
  • Hardware PWM - crisp throttle response, smooth running and silent operation
  • Continuous current rating 35A
  • Burst current up to 10sec 40A
  • Weight 4.37g (excluding the wire)
  • 3-6S Lipo input voltage
  • Size 32x16x5mm

Signal auto-detect:

  • regular input signal (1-2ms)
  • Oneshot125 (125-250us)
  • Oneshot42 (42-84us)
  • Multishot (5-25us)
  • DShot 150/300/600/1200


1x ESC with soldered power and signal cables

Additional Information

Additional Information

Max amperage 35A
Input voltage 3S, 4S, 5S, 6S
Firmware BLHeli_32
Item weight (g) 9
Dimensions 32x16x5mm
