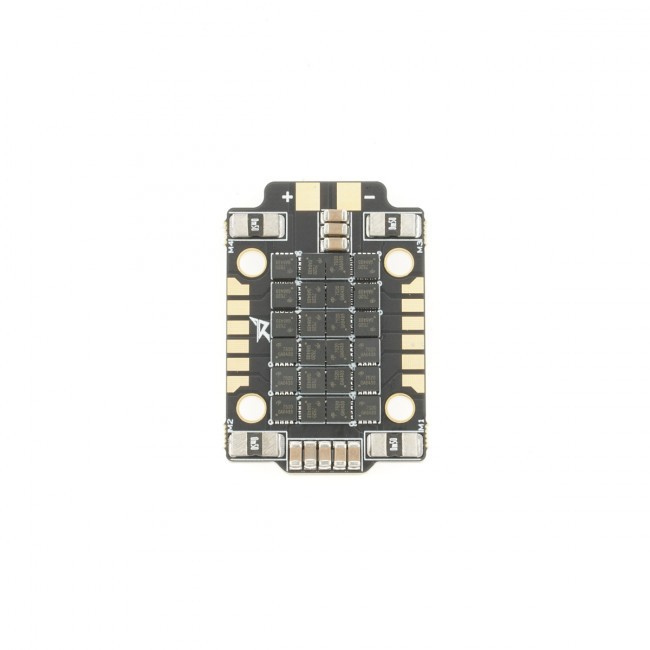

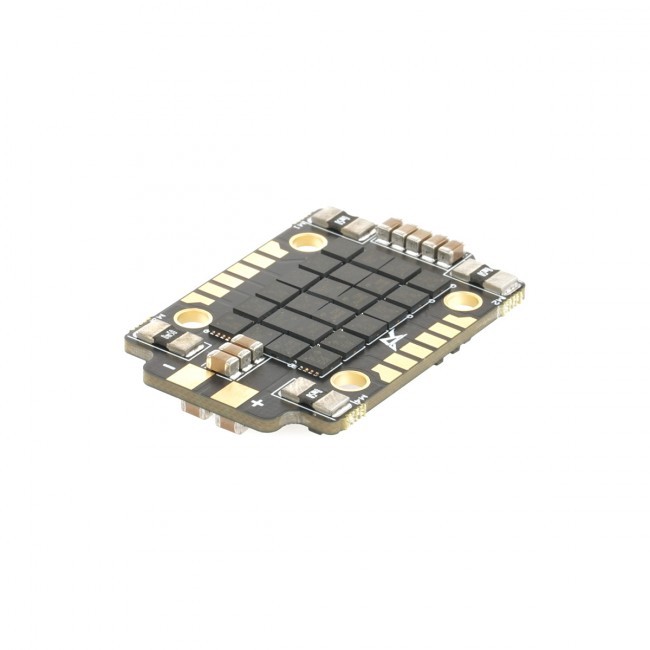

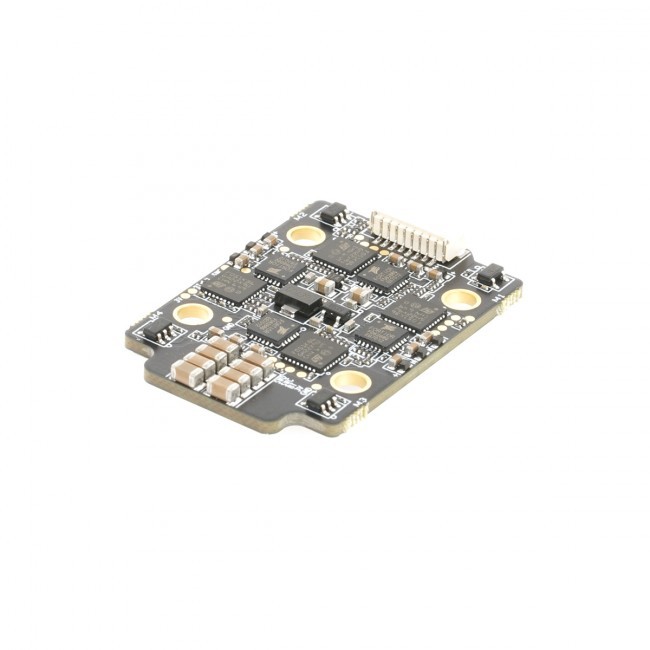

Airbot Ori32 4-in-1 25A BLHeli_32 ESC 20x20

More Views

Airbot Ori32 4-in-1 25A BLHeli_32 ESC 20x20

Availability: Out of stock

Powerful 4in1 BLHeli_32 ESC for micro builds with 20x20 electroncs stack.


Features & specs

  • BLHeli_32 firmware
  • VBat output
  • No BEC
  • Lipo: 2-4s input
  • Amp rating: 4 x 25A
  • Mount holes: 20 x 20 mm

Signal auto-detect:

  • regular input signal (1-2ms)
  • Oneshot125 (125-250us)
  • Oneshot42 (42-84us)
  • Multishot (5-25us)
  • DShot 150/300/600/1200


1x naked ESC (no cables)
1x optional heatsink

Additional Information

Additional Information

Max amperage 25A
Input voltage 2S, 3S, 4S
Firmware BLHeli_32
Item weight (g) 12
Dimensions 27x40x7mm
