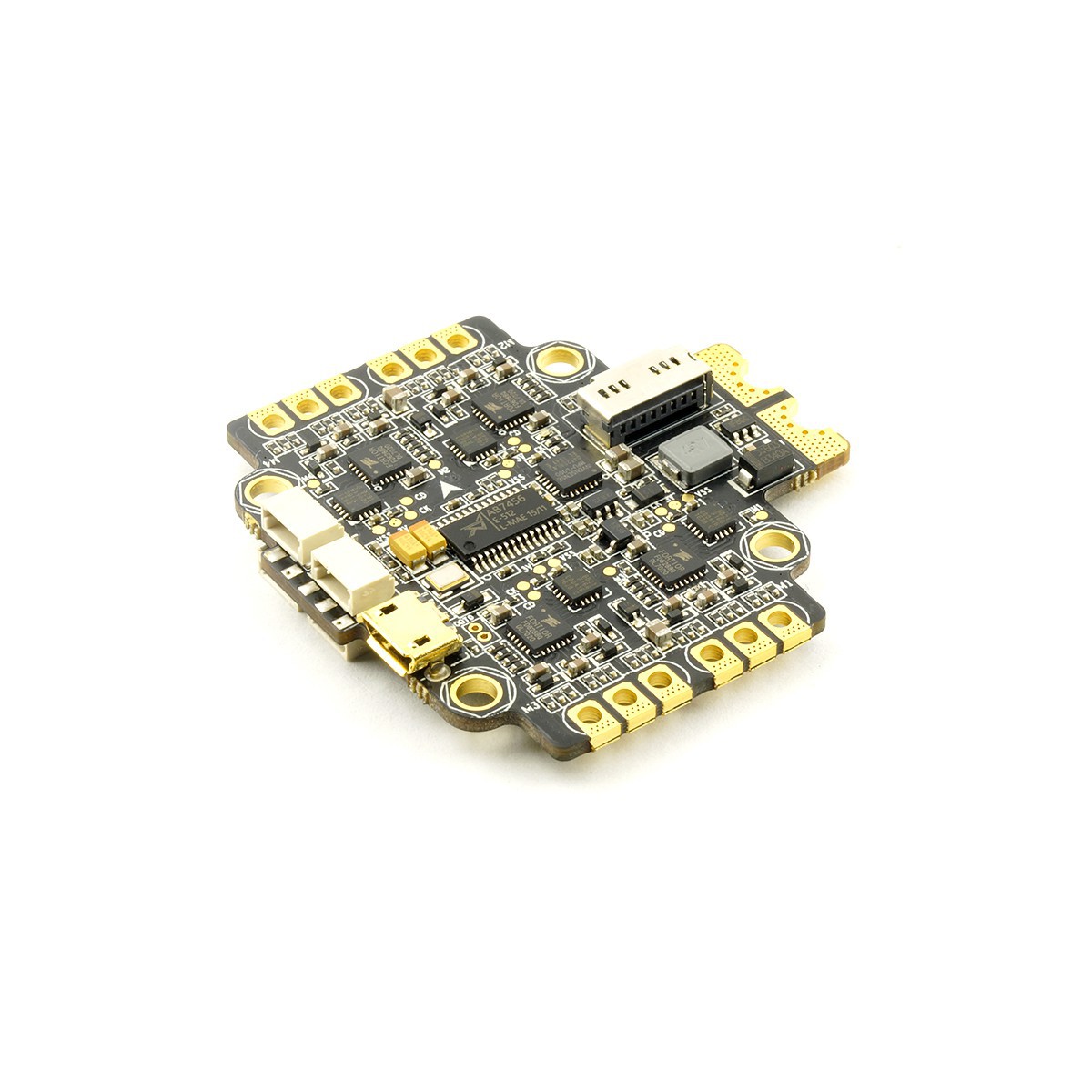

Airbot Asgard F4 FC + ESC + PDB + OSD AIO

Regular Price: €89.00

Special Price €69.00

Availability: Out of stock

The first and only real AIO board. PDB with current sensor, 4 ESCs, flight controller and OSD. All on single board.



  • F4 Flight Controller
  • 4x BLHeli_S ESC
  • OSD
  • SD Card
  • Current sensor
  • BEC

Supported firmwares

For flight controller use Betaflight “OMNIBUS F4 SD” target
For ESCs use BLHeli “J_H_15” target


  • SPI Gyro MPU6000
  • On-board OSD (controllered by Betaflight, FC over SPI bus)
  • MicroSD for blackbox
  • F4 processor (F405)
  • 5v1a SBEC
  • Built-in current sensor
  • 4x BLHELI_S ESC (DShot ready)
  • 2x UART
  • Buzzer output
  • WS2812B LED output
  • Mount holes 30.5 x 30.5mm


1x Asgard
1x Printed manual

Note that Asgard has 4x SH1.0 4-pin connectors for everything. Please get the cable set with the FC unless you already have these type of cables.

Additional Information

Additional Information

Features PDB, OSD, BEC, SDCard, Current Sensor, Voltage Sensor
Gyro MPU6000
Mount holes 30x30mm
Item weight (g) 14
