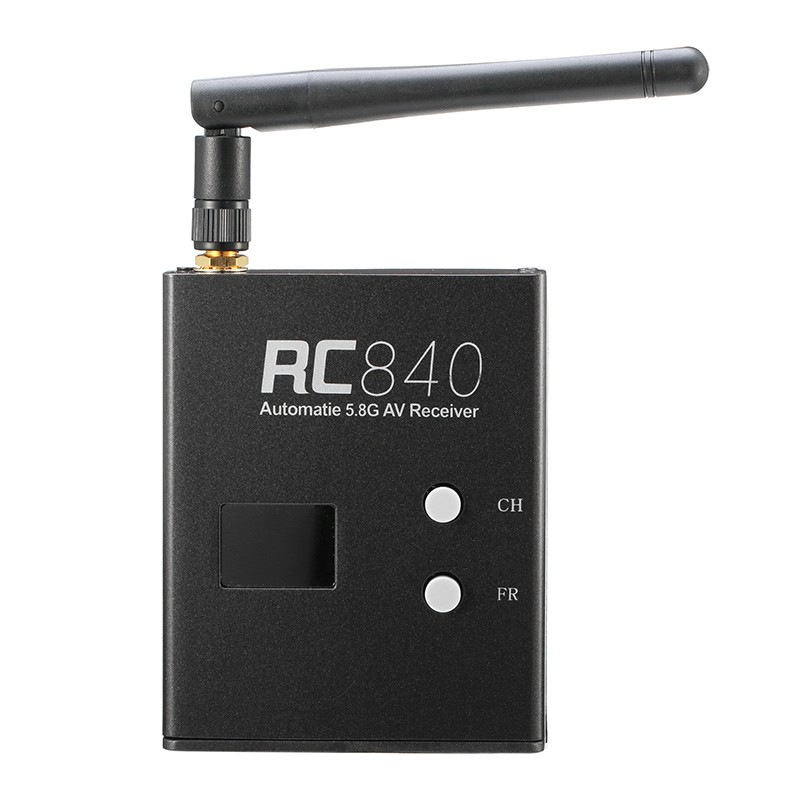

Eachine RC840 5.8Ghz 40ch raceband FPV video receiver

More Views

Eachine RC840 5.8Ghz 40ch raceband FPV video receiver
€29.00

Availability: In stock

40 channel Raceband FPV receiver module
Description

Details

Features

  • 40 channels: Cover A, B, E bands and F band (Airwave band), 4 bands and all frequencies
  • Two switching buttons: CH button for switching frequency channels; FR button for switching frequency bands
  • Two digital displays: one for CH and the other for FR, real-time positioning of frequency band and channel received
  • Power off memory: Replay the very last frequency band and channel
  • Independent video and audio signal outputs

Specs

  • Brand name: Eachine
  • Item name: RC840 FPV Receiver Module
  • Frequency: ISM 5.8G 600mW
  • Channel: 40CH Raceband
  • Power supply: DC 12V
  • Sensitivity: ≤ -90dBm
  • Consumption Current: 200mA, Max.
  • Antenna Connector: RP-SMA
  • Antenna Gain: 2dBi
  • Video Output Level: 1.0Vp-p Typ 75Ω
  • Audio Output Level: 1.0Vp-p Typ 10KΩ
  • Audio Carrier: 6.5MHz
  • Type Standard: NTSC/PAL
  • Dimension(LxWxH): 80x65x15mm
  • Weight: 85g

Frequency Table

Frequency Band A 5865 5845 5825 5805 5785 5765 5745 5725
Frequency Band B 5733 5752 5711 5790 5809 5828 5847 5866
Frequency Band E 5705 5685 5665 5645 5885 5905 5925 5945
Frequency Band F 5740 5760 5780 5800 5820 5840 5860 5880
Frequency Band R 5658 5695 5732 5769 5806 5843 5880 5917

Includes

1x RC840 Receiver Module
1x Antenna
2x Cable
1x User Manual
