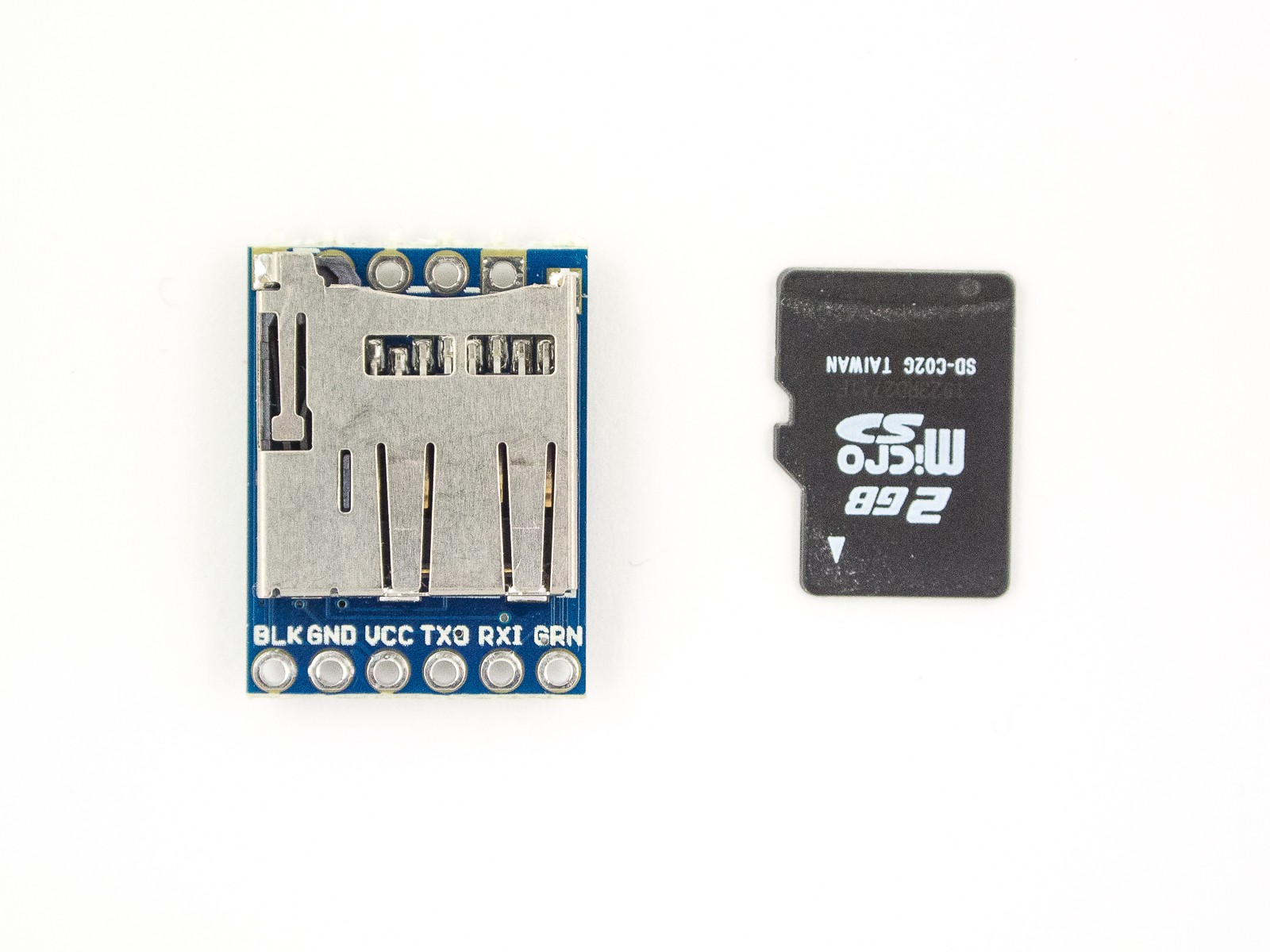

Openlog Serial Data Logger for Blackbox

More Views

Openlog Serial Data Logger for Blackbox
€15.00

Availability: In stock

Logger module for flight controller Blackbox.
Description

Details

microSD slot for FAT16/32 cards up to 16GB
Configurable baud rates (2400 to 115200bps)
Power, ground, and RX-I are the minimum connections

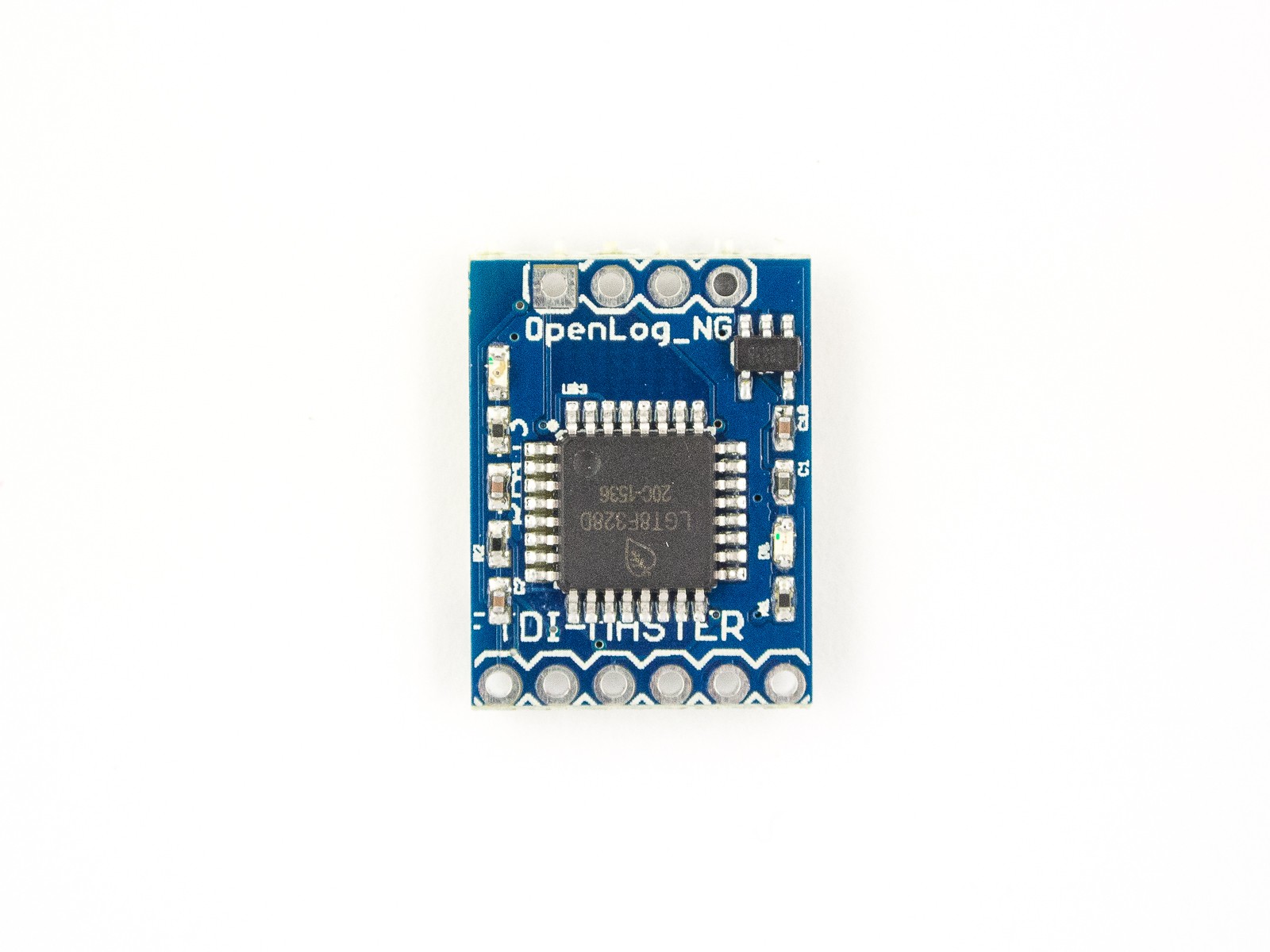

Reprogrammable ATmega328 using the Arduino IDE
Two LEDs indicate writing status
Input voltage: 5V
Power consumption: 2mA idle, 6mA at max
Size: 15 x 19 x 4mm

Additional Information

Additional Information

Function No
Item weight (g) 2
Manufacturer No
