Compatible with: KV OSD, MWOSD and all other MinimOSD firmwares.

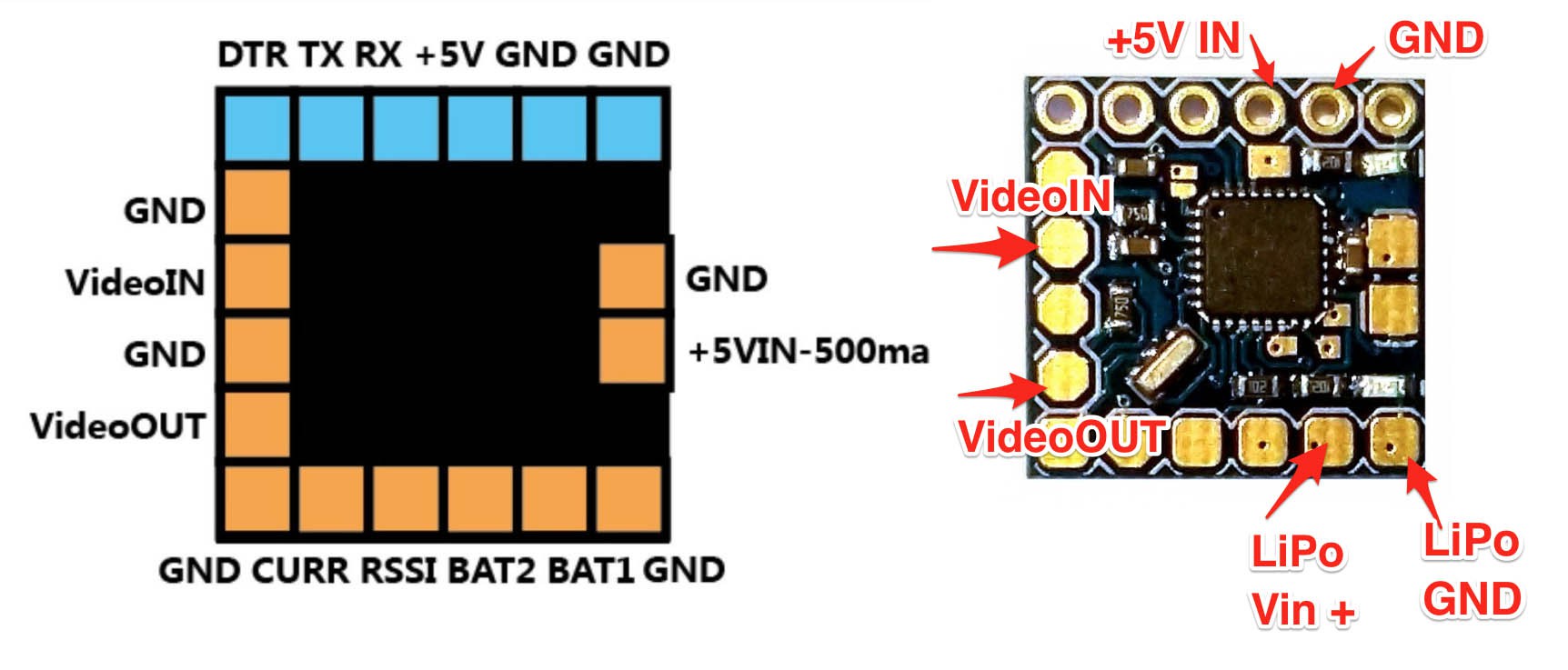

FTDI cable compatible pinout
Standard 6-pin ISP header
ATmega328P with Arduino bootloader
MAX7456 monochrome on-screen display
Pad for an Analog or Digital PWM RSSI signal
Pad for the connection of a Current Sensor
16 x 16mm size

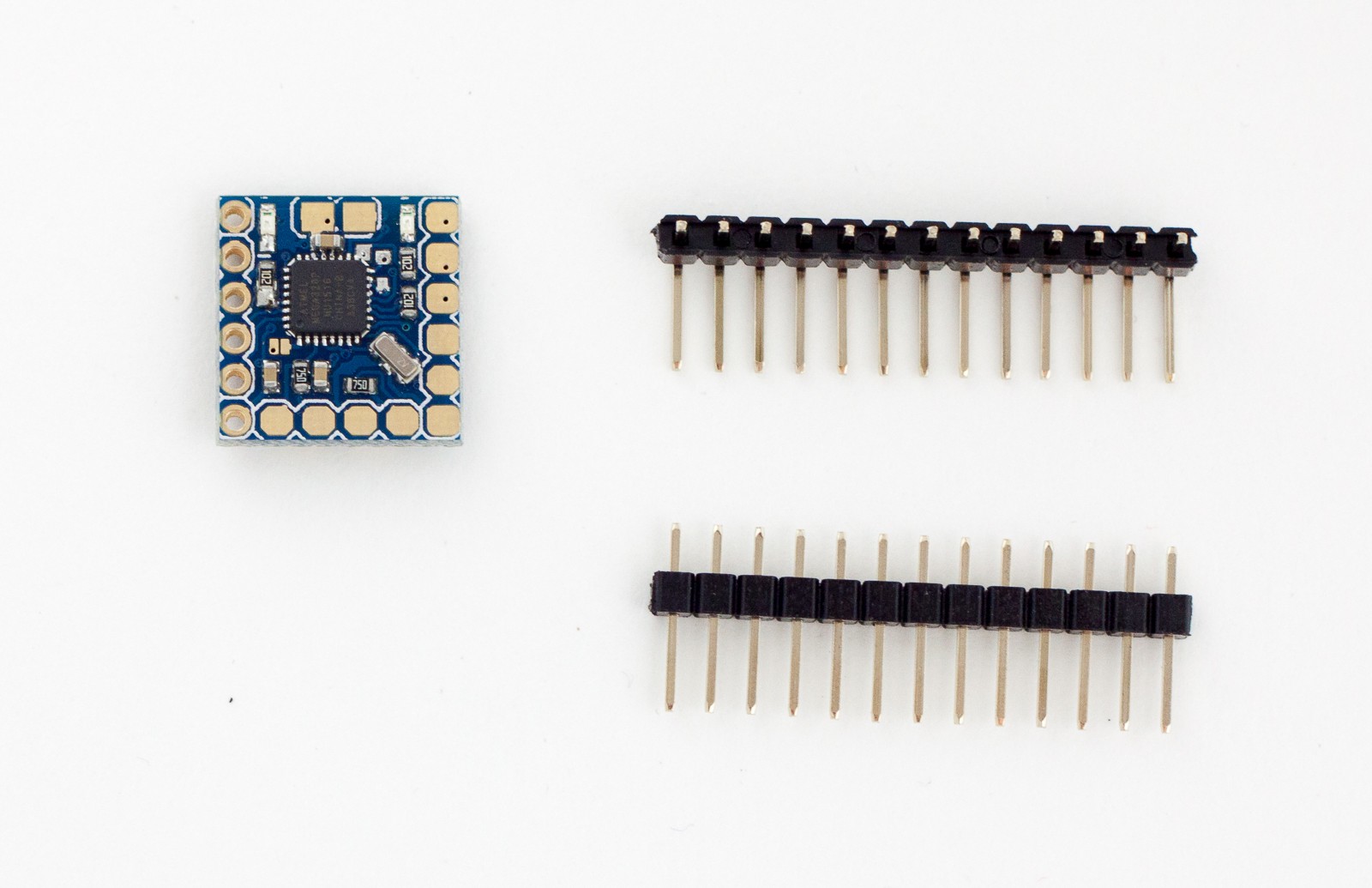

1 x Micro Minim OSD board
2 x pins (sets)
NB! Make sure you have clean 5V supply for the OSD. Text disappearing on full throttle and sharp maneuvers is common symptom with modern fast ESCs with powerful brake. Braking ESCs generate ripple in voltage which the MAX7456 is sensitive of. To fix this add a capacitor to 5V rail, a small tantalum for example.
- Additional Information
Function OSD Item weight (g) 2 Manufacturer No
