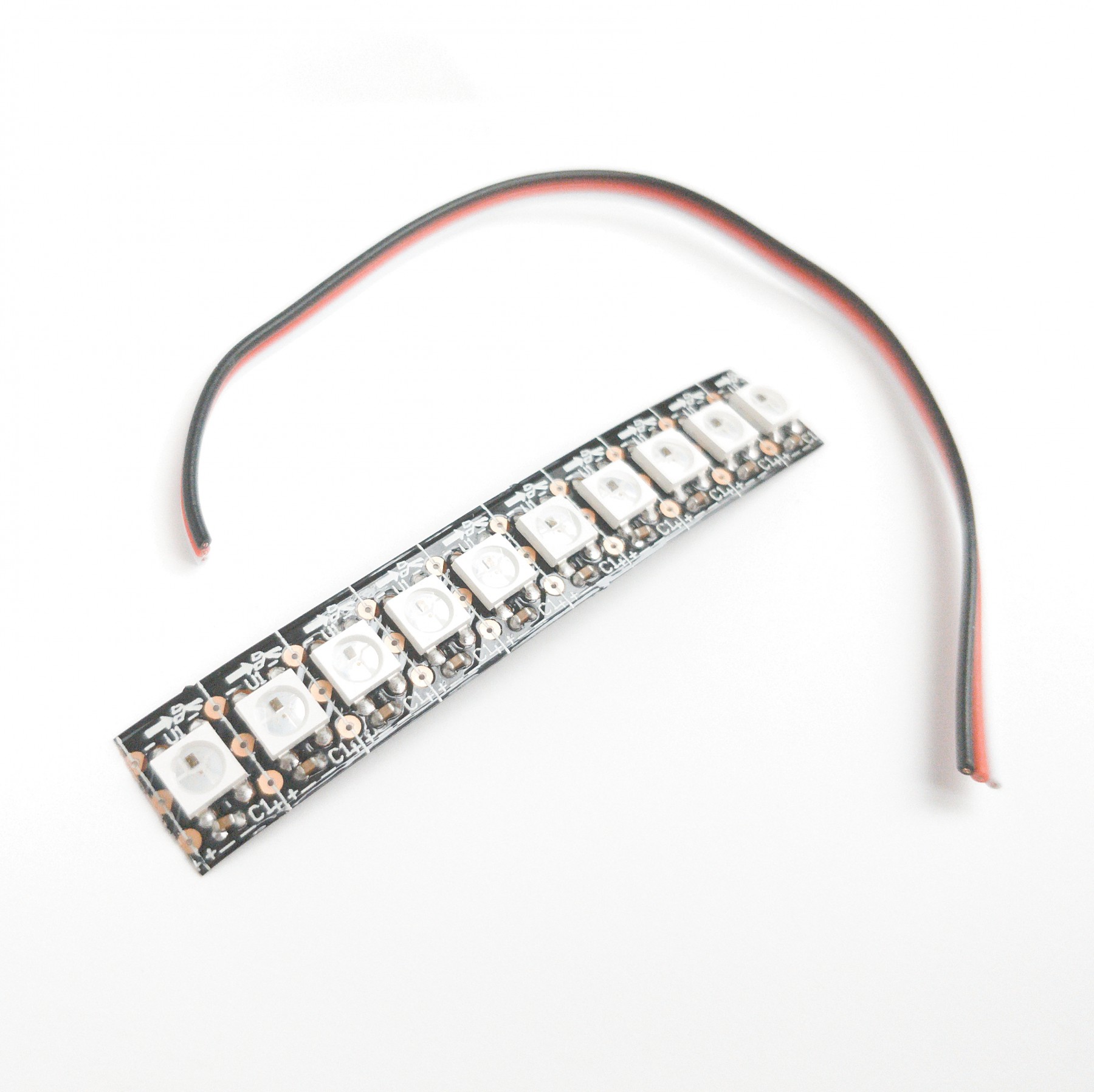

Generic addressable smart RGB LED strip WS2812B 144/m

Availability: Out of stock

5V powered smart LED strip can be connected to series and controlled directly with a PWM signal from flight controller led connector. Price is for 5 LED strip. If you buy more we'll ship it as one continuous uncut strip so you can cut it as needed.


Features & Specs

  • Individually addressable RGB LEDs (144 LEDs per meter)
  • 24-bit color control (8-bit PWM per channel);
  • 16.8 million colors per pixel
  • One-wire digital control interface
  • 5V operating voltage
  • Each RGB LED draws approximately 50 mA at 5 V with red, green, and blue at full brightness
  • 12 mm width, 4.6 mm thickness
  • Flexible, waterproof silicone rubber sheath (IP65 protection rating)
  • Black strip color
  • Power/data connectors on both strip ends for easy chaining
  • Strips can be cut apart along the lines between each RGB LED segment to separate them into usable shorter sections
  • Included: 5 diodes (buy more to receive longer continuous strip)
Additional Information

Additional Information

Function Light
Item weight (g) 2
Manufacturer No
