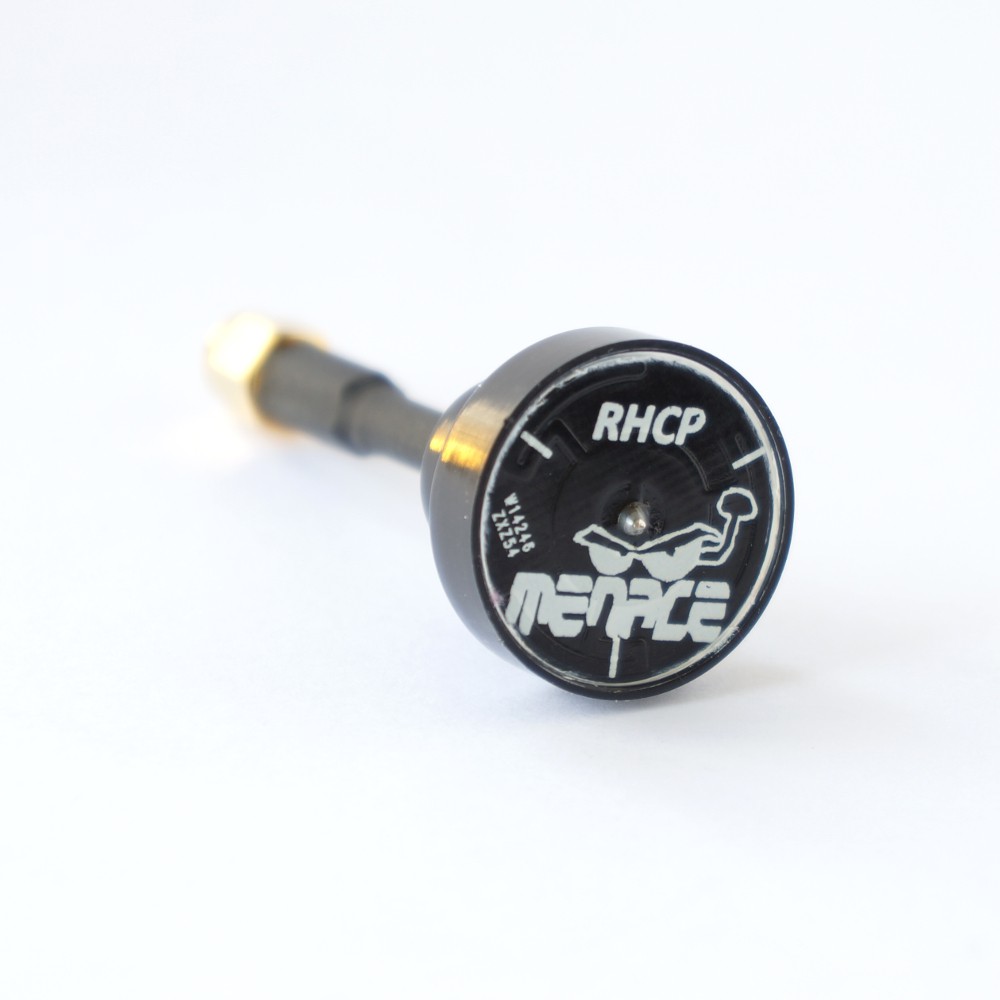

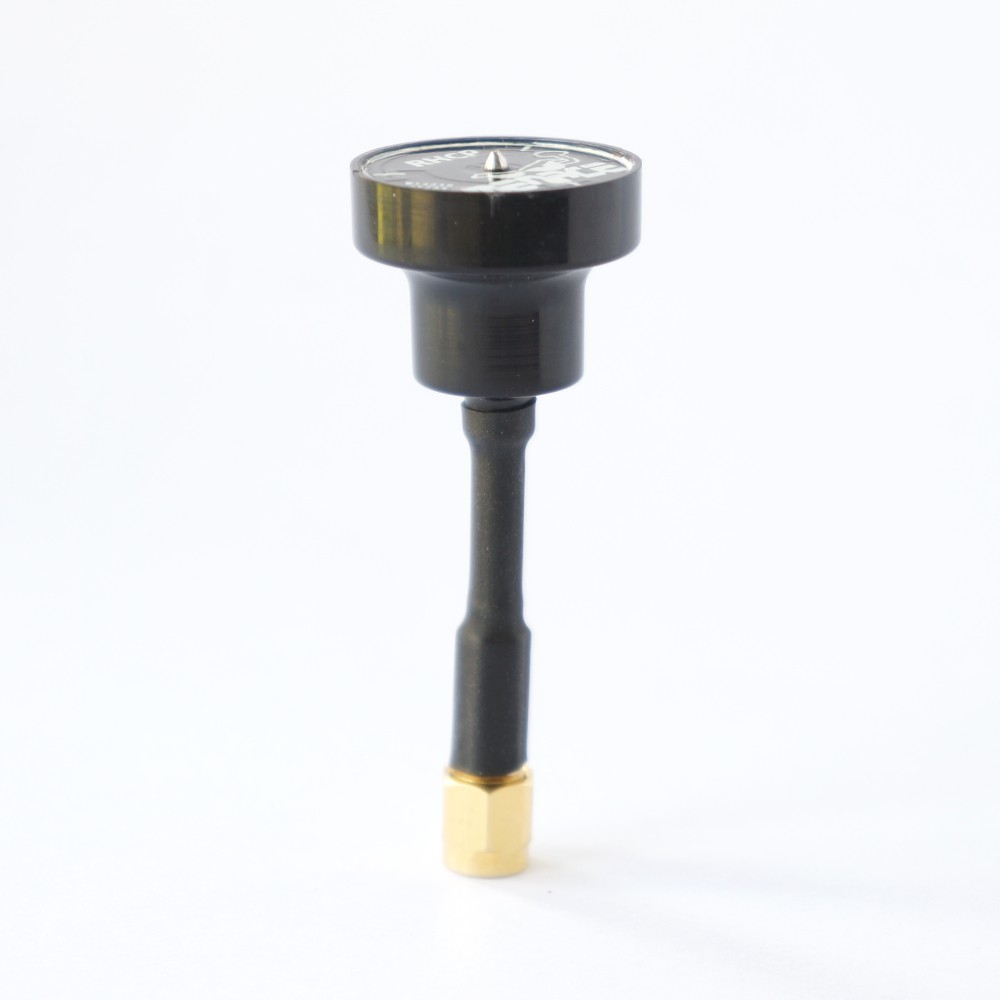

Menace Stubby Raptor 5.8Ghz Pagoda FPV Antenna

More Views

Menace Stubby Raptor 5.8Ghz Pagoda FPV Antenna
€12.90

Availability: In stock

The STUBBY RAPTOR antenna now even smaller compact omni - less chance of getting it caught on that racing gate or tree.

* Required Fields

Description

Details

Features

  • Small 5.8Ghz Aero design with excellent omni directional pattern
  • Unique PCB construction allows manufacturing within fine tolerances
  • Gain 1.09dB with a radiation efficiency of 92%
  • Clearer video reception with up to 20% greater signal received than other omni antenna topology with higher gain
  • High Axial Ratio for reversed polarity rejection, ideal for sending and receiving as a pair.
  • Robust injection moulded case for crash protection
  • Weight less than 10 grams

Specs

  • Centre frequency 5.8 GHz
  • Frequency Range: 5550 – 6050 MHz
  • Matching S11 < -20dB, VSWR <1.22
  • Gain: 1.09dB with efficiency: 92%
  • Axial Ratio <1.3
  • Beam width: 360 degrees
  • Left or Right Hand Circular Polarised (LHCP or RHCP)
  • SMA Connector
  • Height: 85mm
  • Weight: 9.4grams
Additional Information

Additional Information

Frequency 5.8 Ghz
Manufacturer No
