Matek RGB LED board 5050 / 16V

More Views

Matek RGB LED board 5050 / 16V

Availability: In stock

The 16V lamp board designed for use with 4S LiPo battery multi-axis / cross machine design, can be taken directly from the 4S battery, using four RGB5050 lamp beads, imported onboard DIP switches, toggle through the corresponding switch, a total of 7 color options.



Input: 14 ~ 17V DC, 4S LiPo battery
DIP switch color selection
Size: 47 * 10mm
Weight: 2g

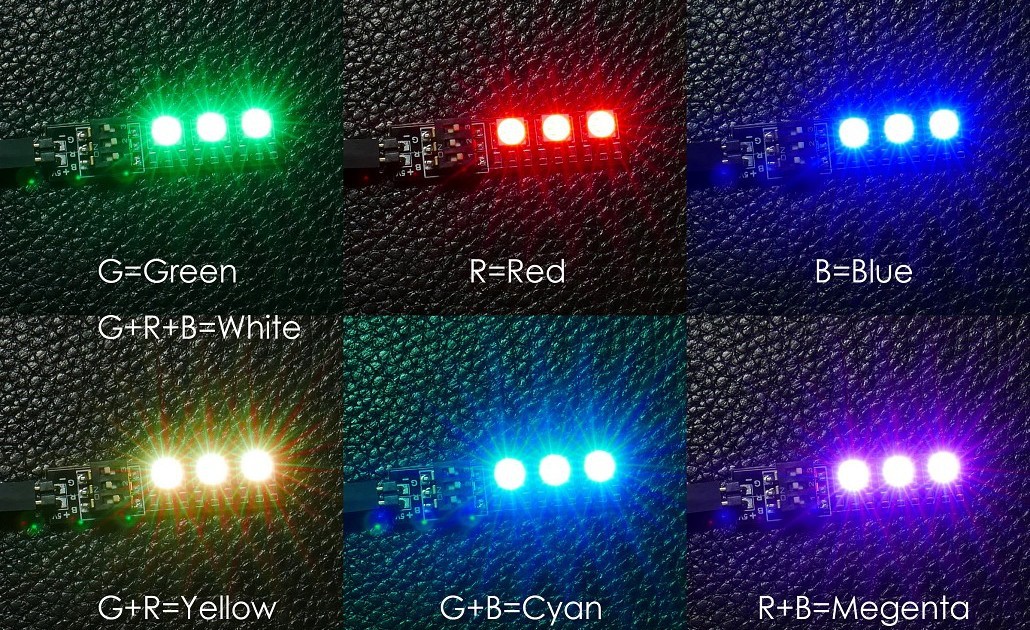

Colors and consumption @16V

B ON = blue, 0.4W, 25mA
R ON = red, 0.4W, 25mA
G ON = green, 0.4W, 25mA
B + R ON = purple, 0.8W, 50mA
B + G ON = cyan, 0.8W, 50mA
R + G ON = yellow, 0.8W, 50mA
B + R + G ON = white, 1.2W, 75mA

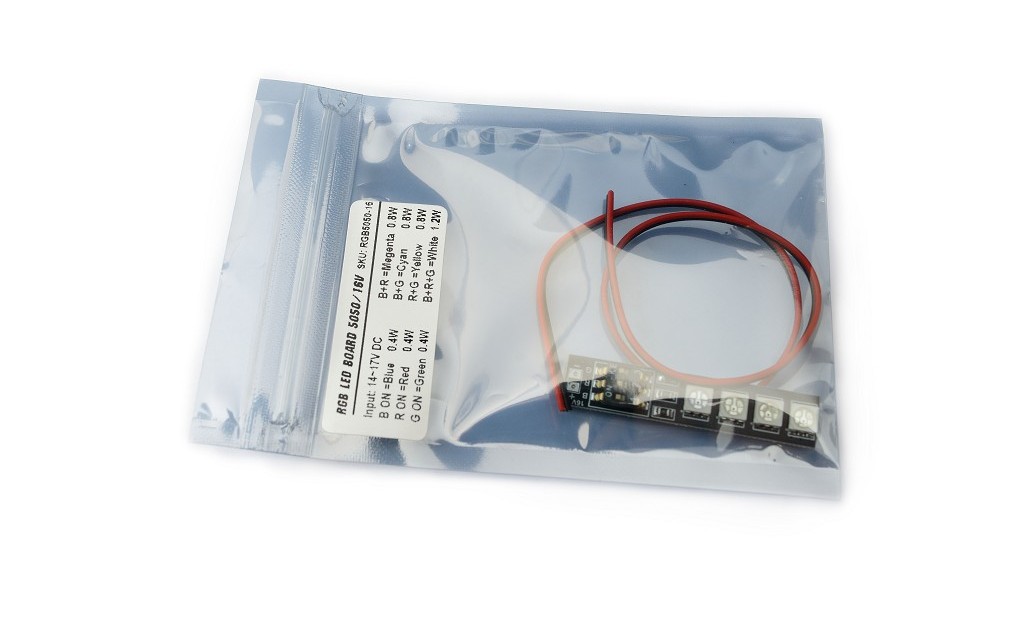

1pc 16V lamp board 1
red and black power cord 30cm
