Matek F405 CTR AIO flight controller

More Views

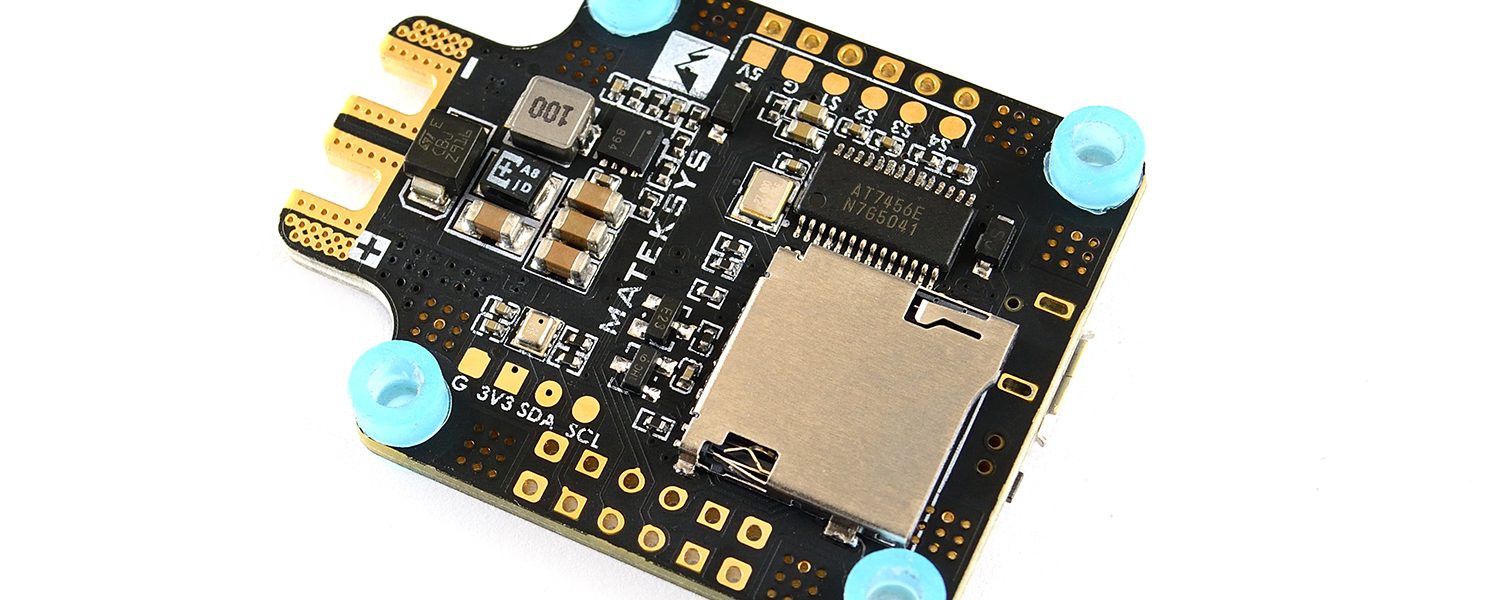

Matek F405 CTR AIO flight controller
€39.90

Availability: In stock

STM32F405, MPU6000, BMP280, BFOSD, SD Card Slot, VCP+5x UARTs, PDB, Current Sensor 184A, BEC 5V/2A
Description

Details

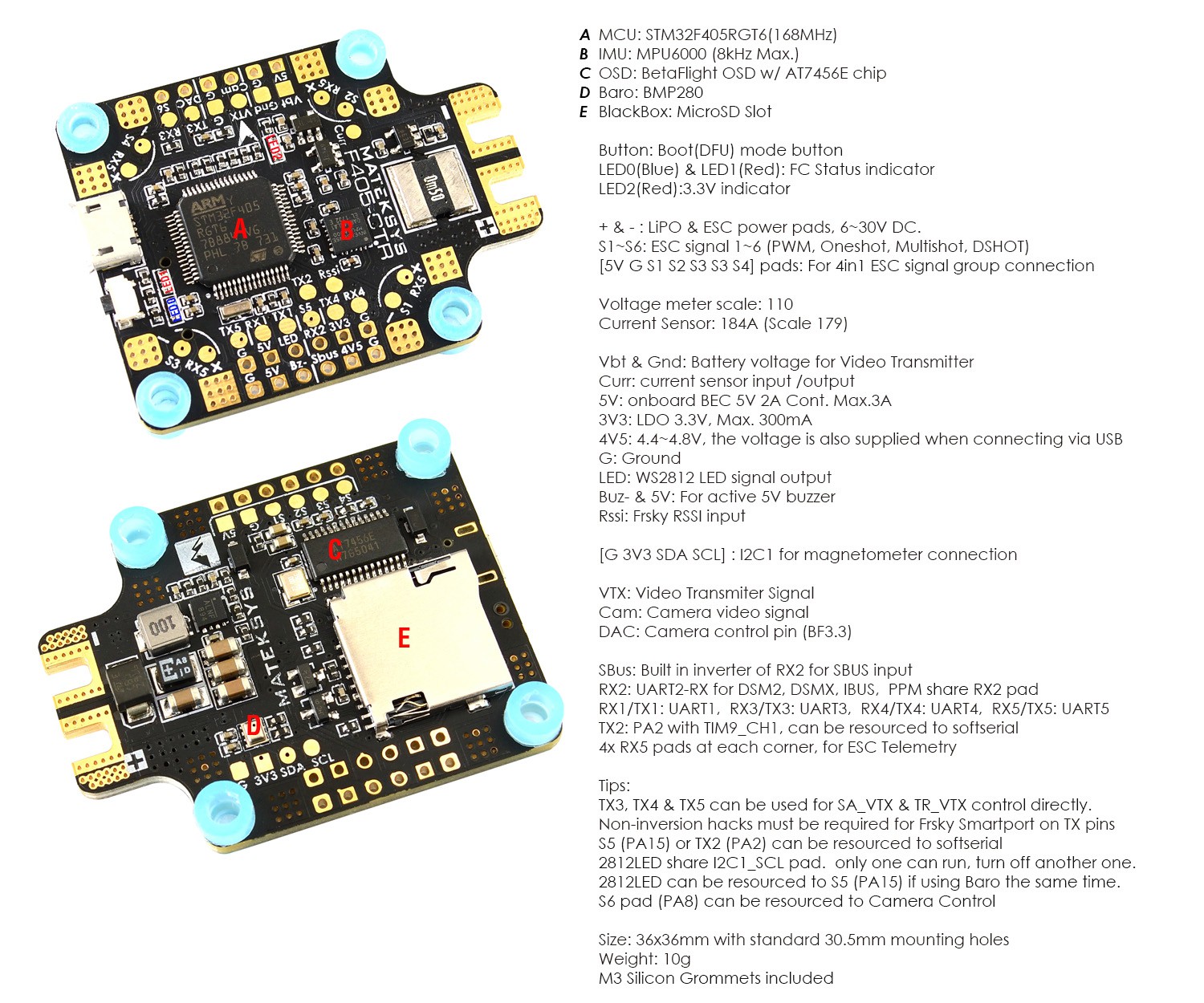

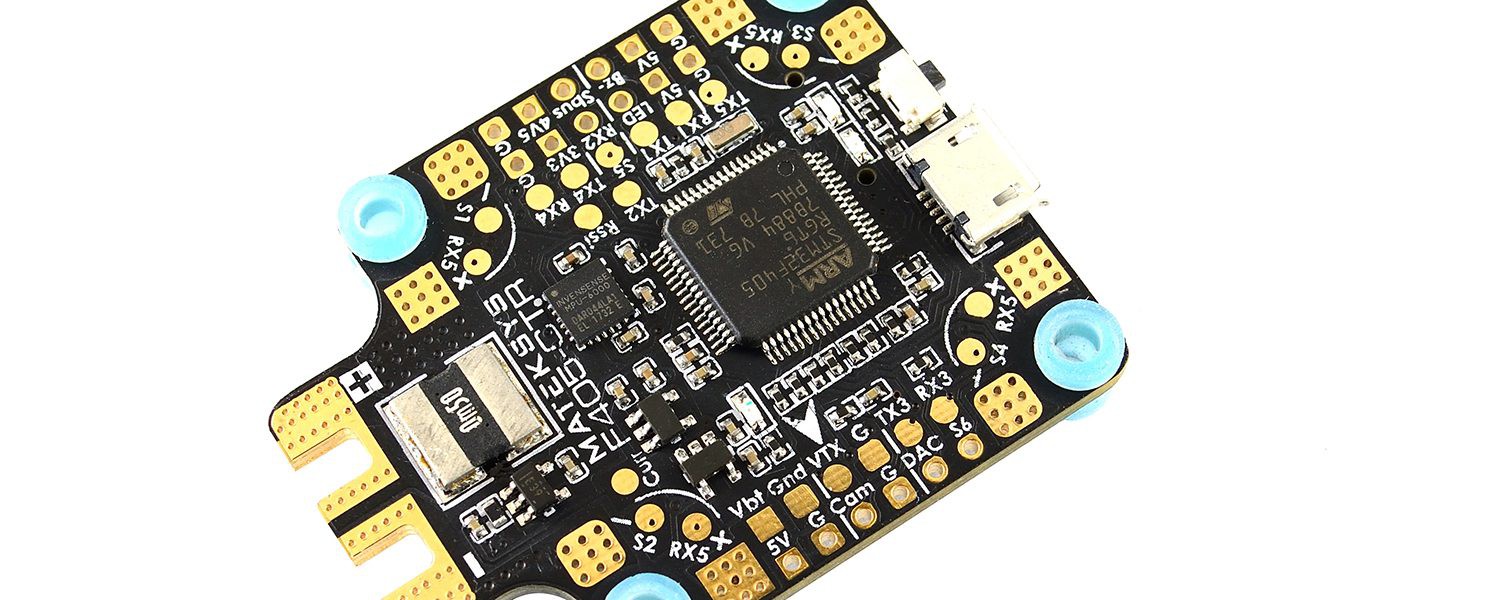

FC Specifications

  • MCU: 168MHz STM32F405
  • IMU: MPU6000 accelerometer/gyro (SPI)
  • Baro: BMP280 (I2C)
  • OSD: BetaFlight OSD w/ AT7456E chip
  • Blackbox: MicroSD card slot (SD/SDHC)
  • VCP, UART1, UART2, UART3, UART4, UART5
  • Built in inverter for SBUS input (UART2-RX)
  • PPM/UART Shared: UART2-RX
  • SoftSerial on TX2, S5 or S6 optional
  • Camera control on S6 or DAC optional
  • Smartaudio & Tramp VTX protocol supported
  • WS2812 Led Strip : Yes
  • Beeper : Yes
  • RSSI: Yes

PDB Specifications

  • Input: 6~30V (3~6S LiPo) w/TVS protection
  • PDB: 4x30A (Max.4x46A), 6 layers*2oz copper PCB
  • BEC: 5V 2A cont. (Max.3A)
  • LDO 3.3V: Max.300mA for Spektrum RX
  • Current Sensor 184A (Scale 179)
  • Battery Voltage Sensor: 1:10 (Scale 110)
  • 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
  • 6x PWM / DShot outputs without conflict
  • 5x UARTs
  • 1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
  • 4x pairs of corner pads for ESC Signal/GND connections (DSHOT compatible)
  • 1x pair I2C1 pads
  • 1x Side-press button for BOOT(DFU) mode
  • Dimensions: 36x46mm PCB with 30.5mm mounting holes
  • Weight: 10g

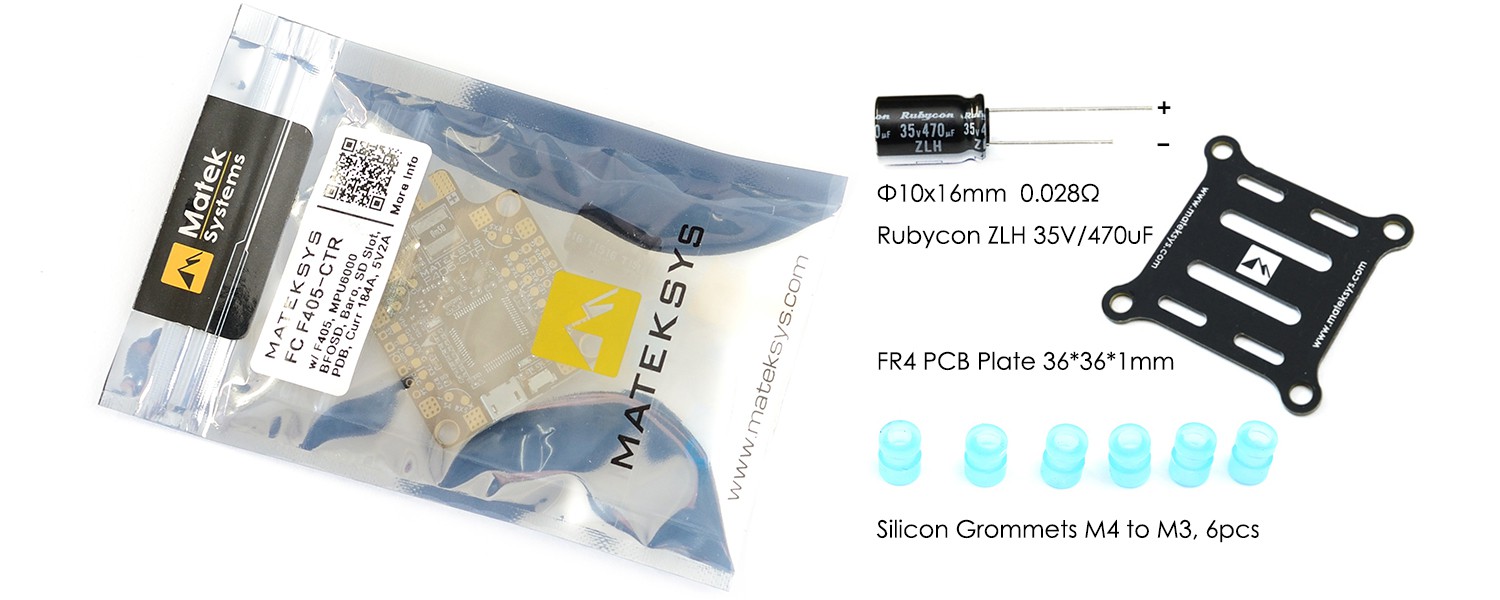

Included

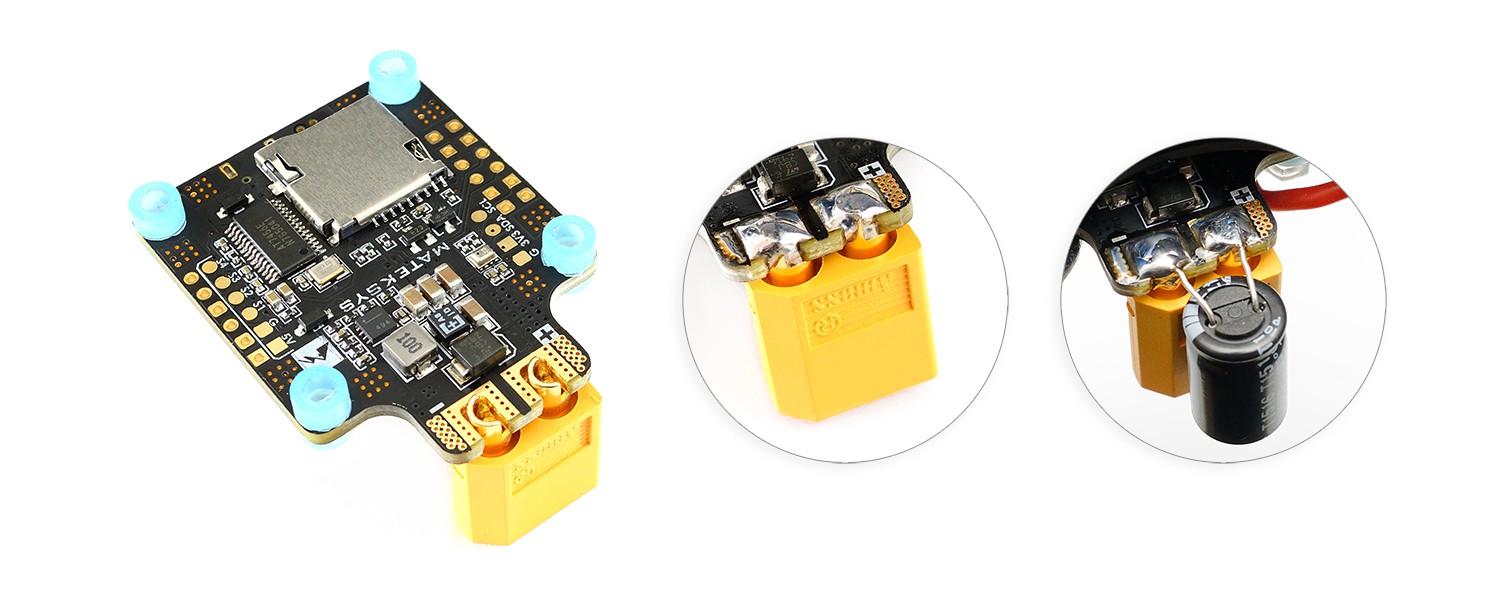

1x Rubycon ZLH 35V/470uF (Low ESR)

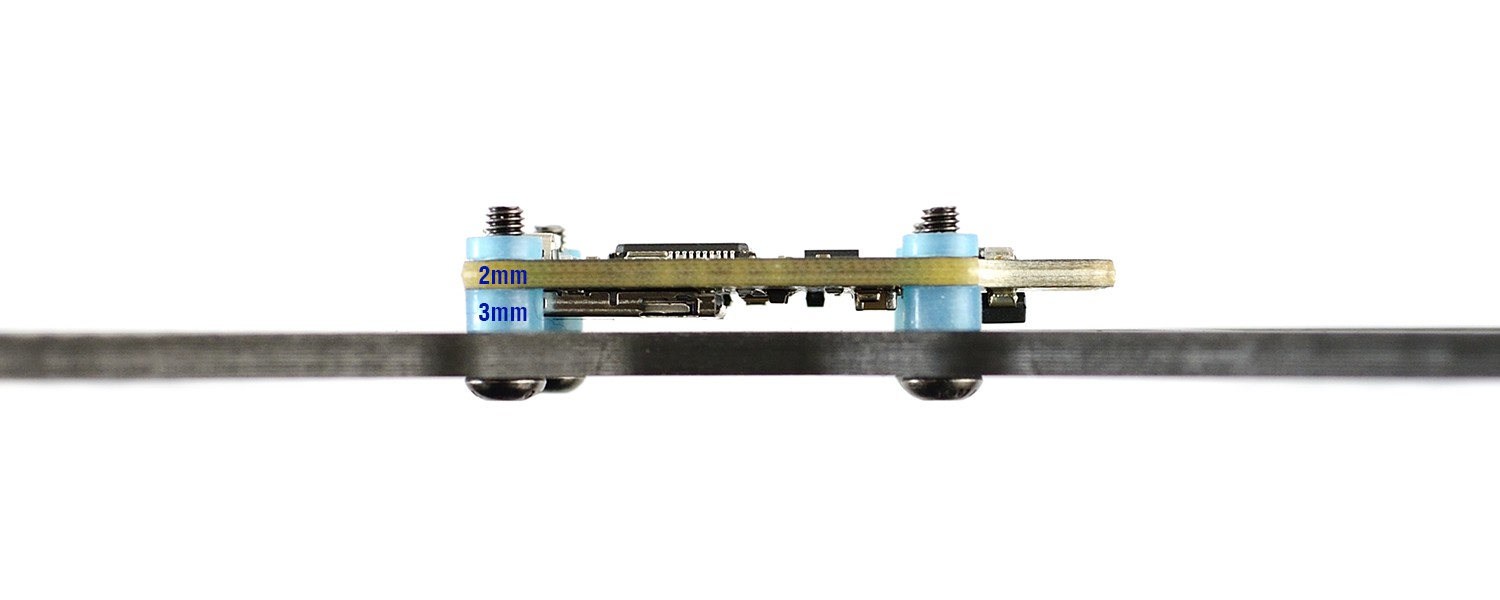

6x silicon grommets M4 to M3
1x FR4 PCB Plate 36*36*1mm

Installation guides & downloads

Matek F405-CTR flight controller

Additional Information

Additional Information

Features PDB, OSD, BEC, Baro, SDCard, Current Sensor, Voltage Sensor
Gyro MPU6000
Mount holes 30x30mm
Item weight (g) 10
