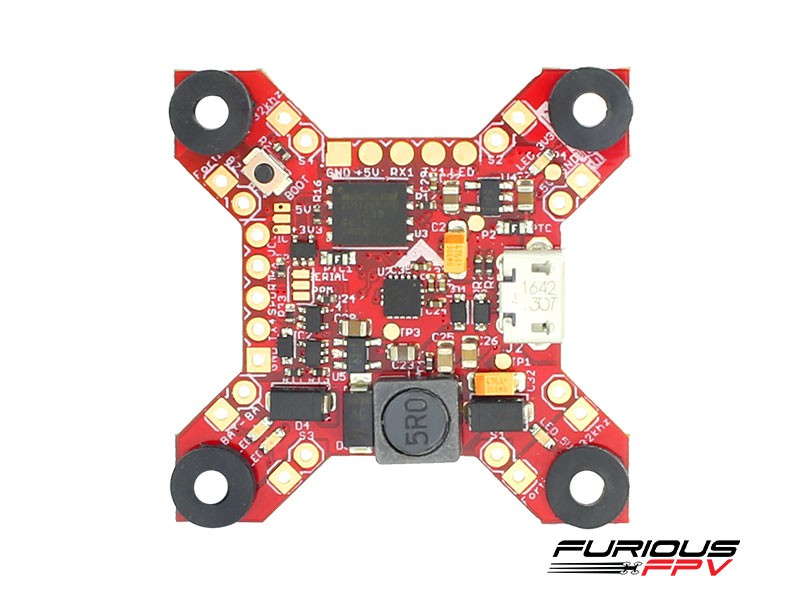

Furious FPV Fortini F4 flight controller

Furious FPV Fortini F4 flight controller

Availability: In stock

32khz looptime capable flight controller with convenient form factor and 5 serial ports.



  • high performance, low noise, ultra sensitive 32kHz Invensense 20602 Gyro
  • five UARTS for simultaneous connections of SBUS, S.Port, OSD and USB
  • UARTS connection options for TBS Smart Audio or Immersion RC Tramp
  • 16MB of BlackBox flash memory for instant data access & breakdown
  • integrated soft mount rubber damping for maximum FC functionality
  • inrush voltage protection input & output via transient voltage suppressor
  • high guality 5V 2A BEC w/ 2S - 6S voltage input range
  • built-in driver inverter for SBUS and smart port connection
  • separate power supply for gyro w/ LDO for low noise & high accuracy
  • 3.3V - 5V selectable BEC output for RX
  • fully capable to power RX via USB port
  • very clean and easy to connect to 4-in-1 ESC


  • Gyro: invensense 32kHz 20602 gyro
  • UARTS Ports: 5
  • BlackBox flash memory: 16MB
  • BEC: 5V 2A 2S 7.4V - 6S 22.2V input voltage range (3.3V - 5V RX selectable)
  • Weight: 5.5g
  • Size: 36x36mm

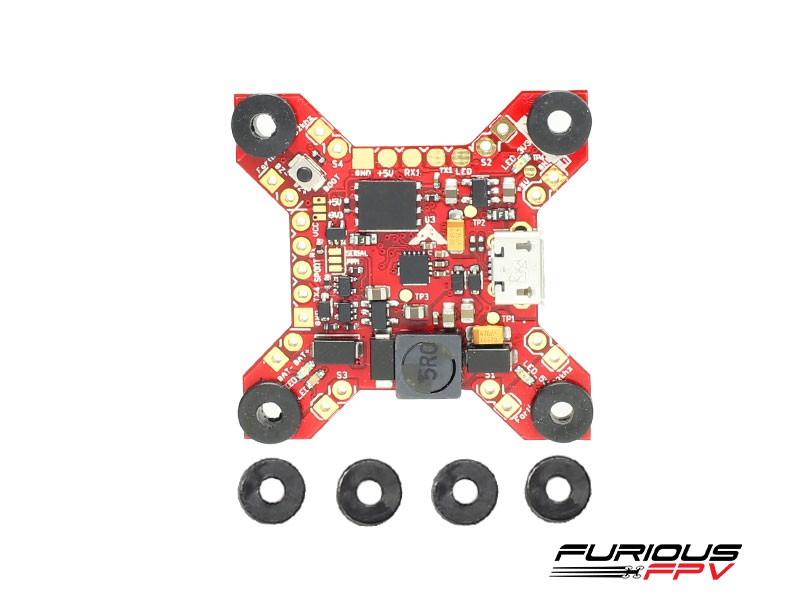

1x Fortini F4 Flight Controller
4x damper M3

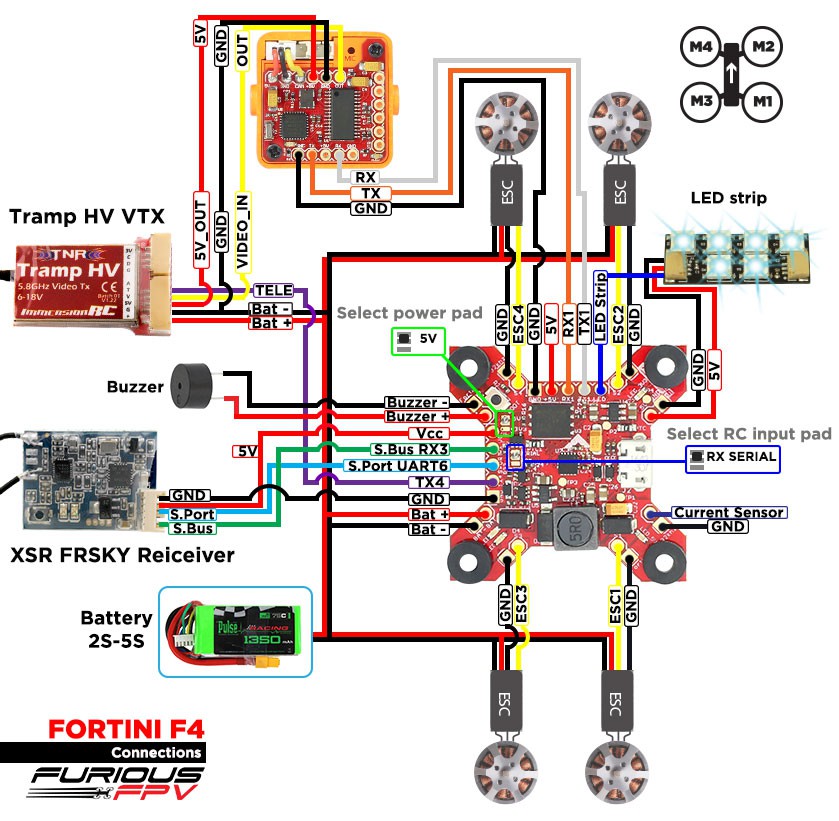

User manual download


Additional Information

Additional Information

Features BEC, Flash, Voltage Sensor
Gyro ICM20608
Mount holes 30x30mm
Item weight (g) 5.5
